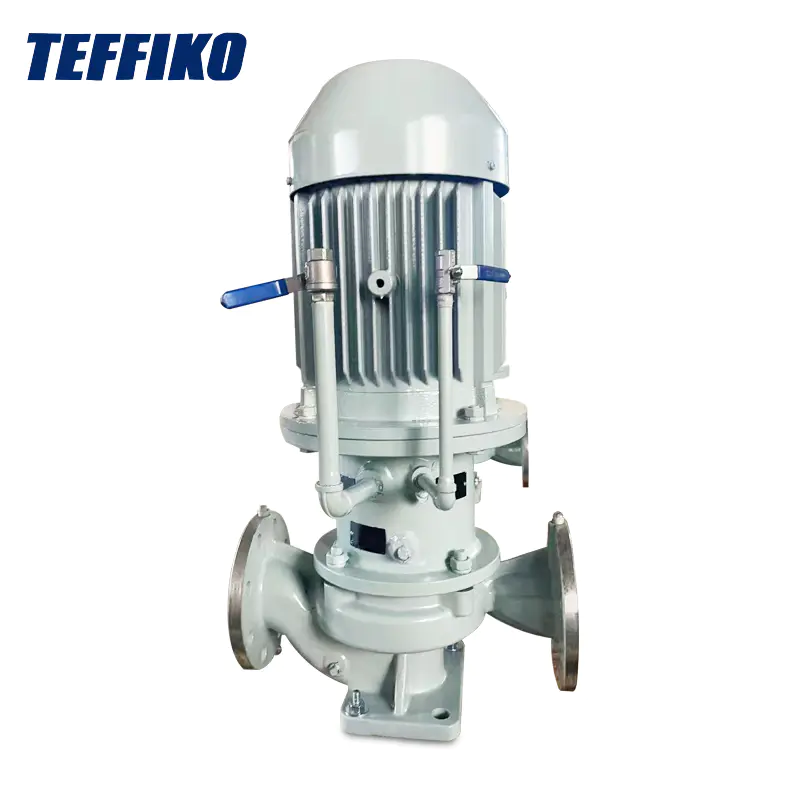

API OH4 Overhung Type Vertical Centrifugal Pumps

The TEFFIKO TLHP series of API OH4 Overhung Type Vertical Centrifugal Pumps features excellent design and manufacturing processes. The shaft is connected by a flange and positioned with a spigot, ensuring high concentricity, low vibration, reliable operation, and convenient maintenance.

The hydraulic flow - through components adopt a high - efficiency and energy - saving hydraulic model. The pump efficiency is 5 - 8% higher than that of ordinary pumps, which can save operating costs for enterprises. The pump body is made by precision casting, with accurate internal structure and an aesthetically pleasing appearance.

This pump is a newly developed generation of single - stage and single - suction chemical pumps. With excellent performance, beautiful appearance, and easy maintenance, it is an ideal choice for pump equipment in the chemical industry.

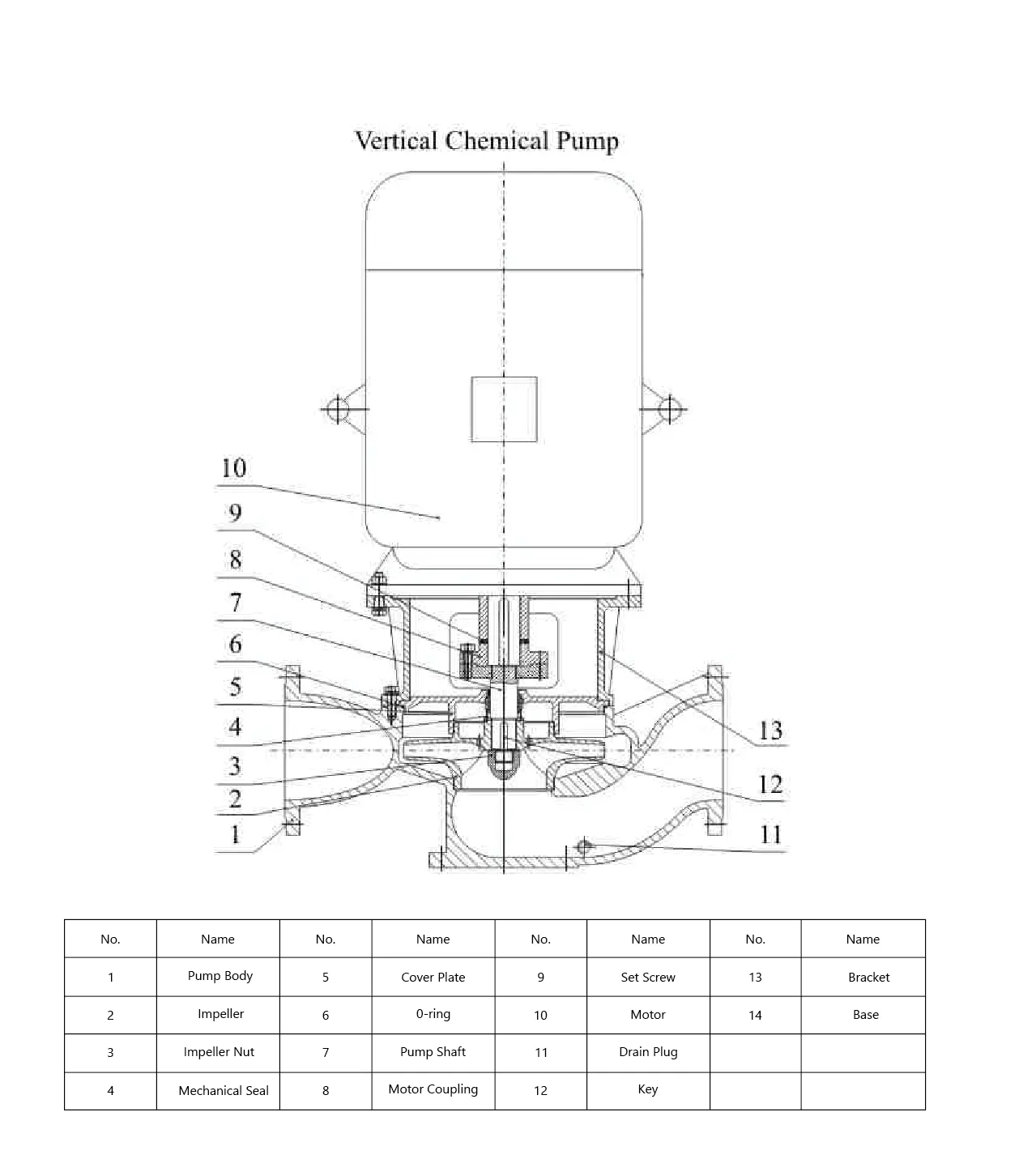

TLHP Centrifugal Pump Schematic Diagram

Application Areas

The TLHP cantilever vertical centrifugal pump is suitable for transporting chemically corrosive liquids (with no or a small amount of solid particles), and the viscosity of the transported medium is similar to that of water.

● Chemical Industry: It is used to transport various corrosive fluids in chemical production.

● Food Industry: It is responsible for transporting fluid raw materials in the food processing process.

● Brewing Industry: It transports raw materials and fermentation broth during the brewing process.

● Refining Industry: It undertakes the transportation of crude oil and refined oil products.

● Pharmaceutical Industry: It transports various liquids required for drug production.

● Paper - making Industry: It transports pulp, white water, and chemical additives.

● Metallurgical Industry: It transports metallurgical liquids, flushing water, and other liquids.

● Power Industry: It transports boiler make - up water and cooling circulating water.

● Environmental Protection Industry: It transports sewage, sludge, and absorption liquids for waste treatment.

Working Conditions

● Flow rate: 1.8 - 900 m³/h

● Head: 135 m

● Suction pressure of the pump: P1W ≤ 0.3MPa

● Discharge pressure of the pump: P2W ≤ 1.6MPa

● Ambient temperature: Not exceeding 40°C

● Altitude: Not exceeding 1000 m (if exceeded, the motor power needs to be corrected)

● Rotational speed: 2960 rpm/min, 1480 rpm/min

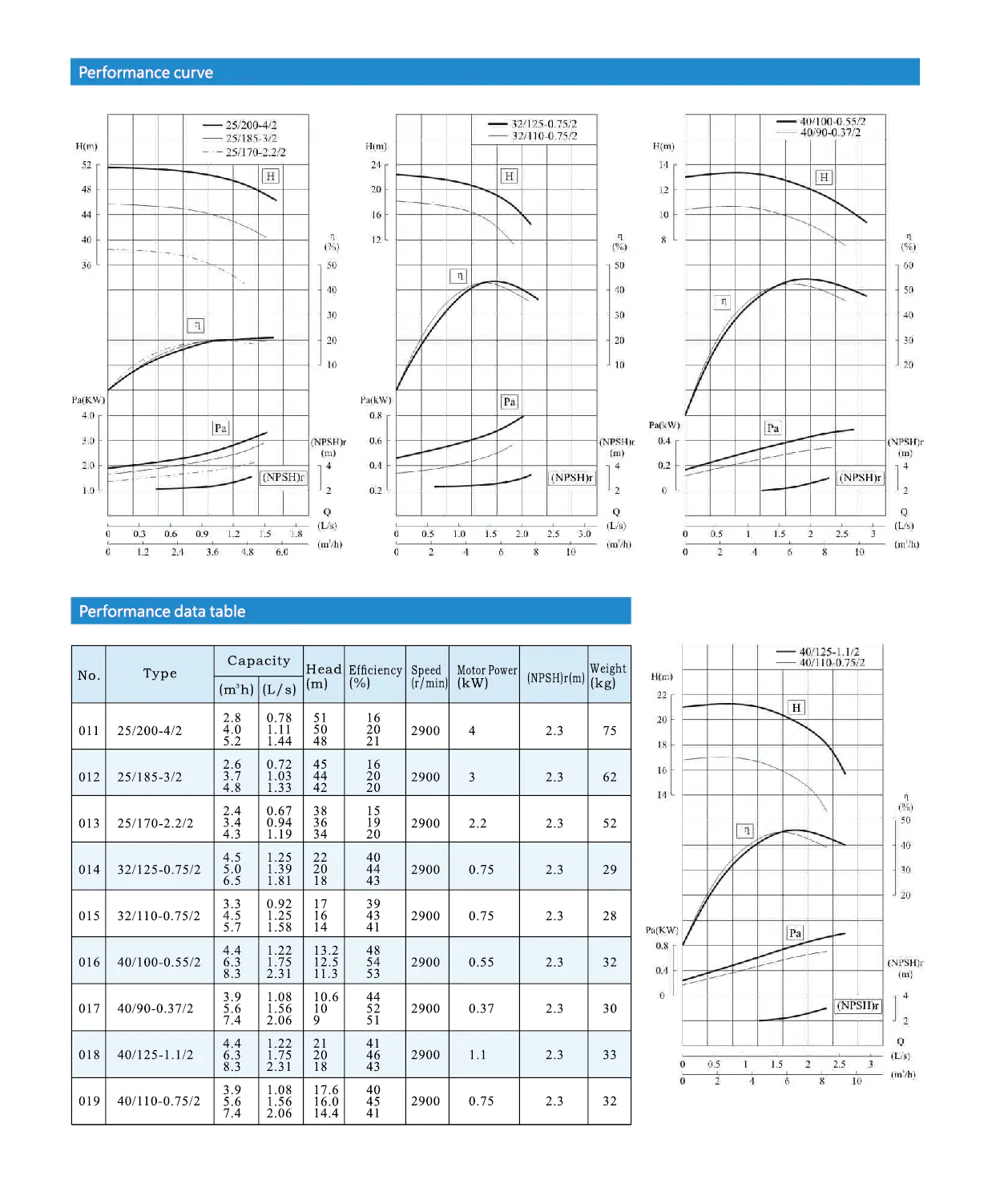

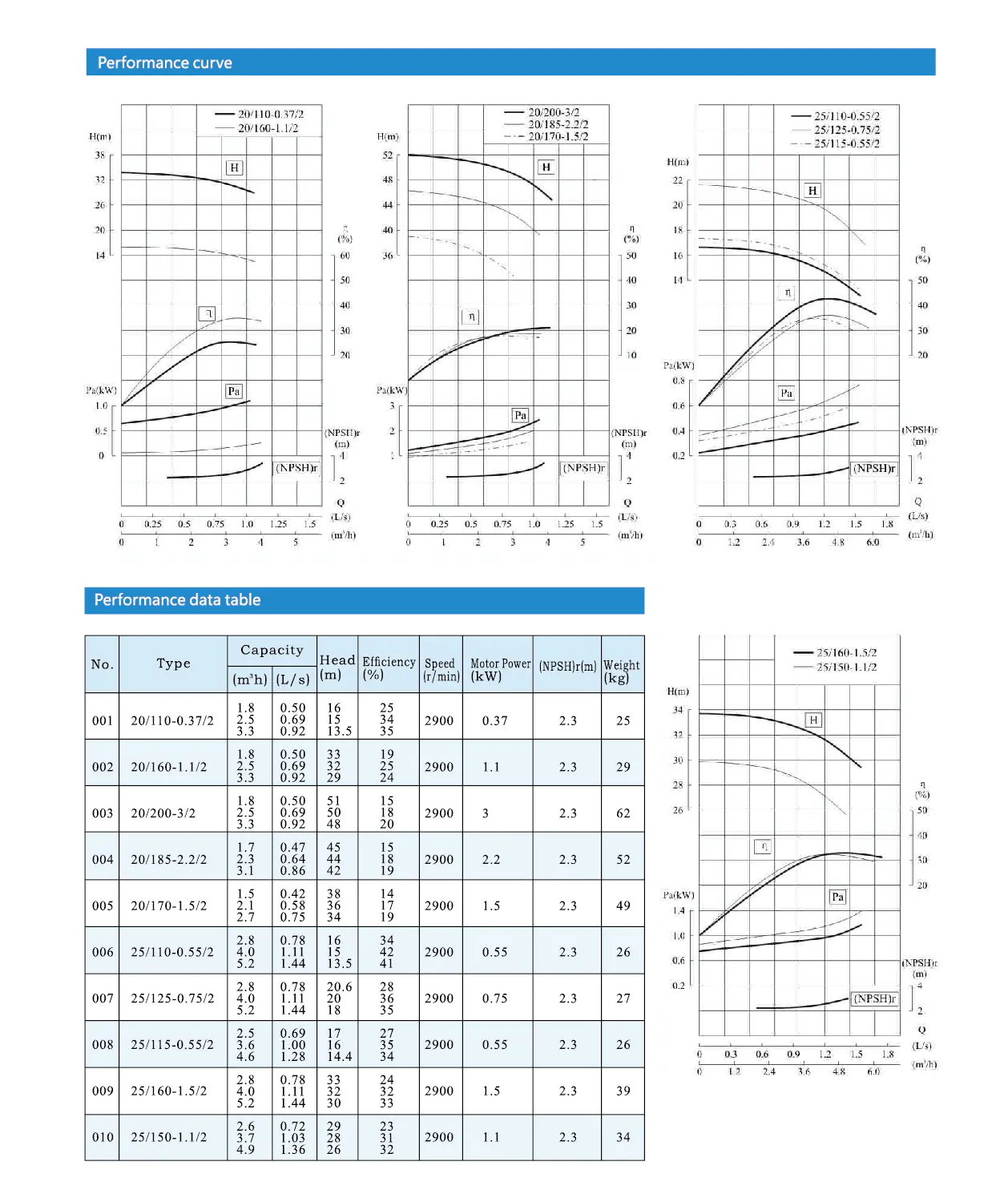

Performance Parameter Diagram
