Open Top Type Single Screw Pumps

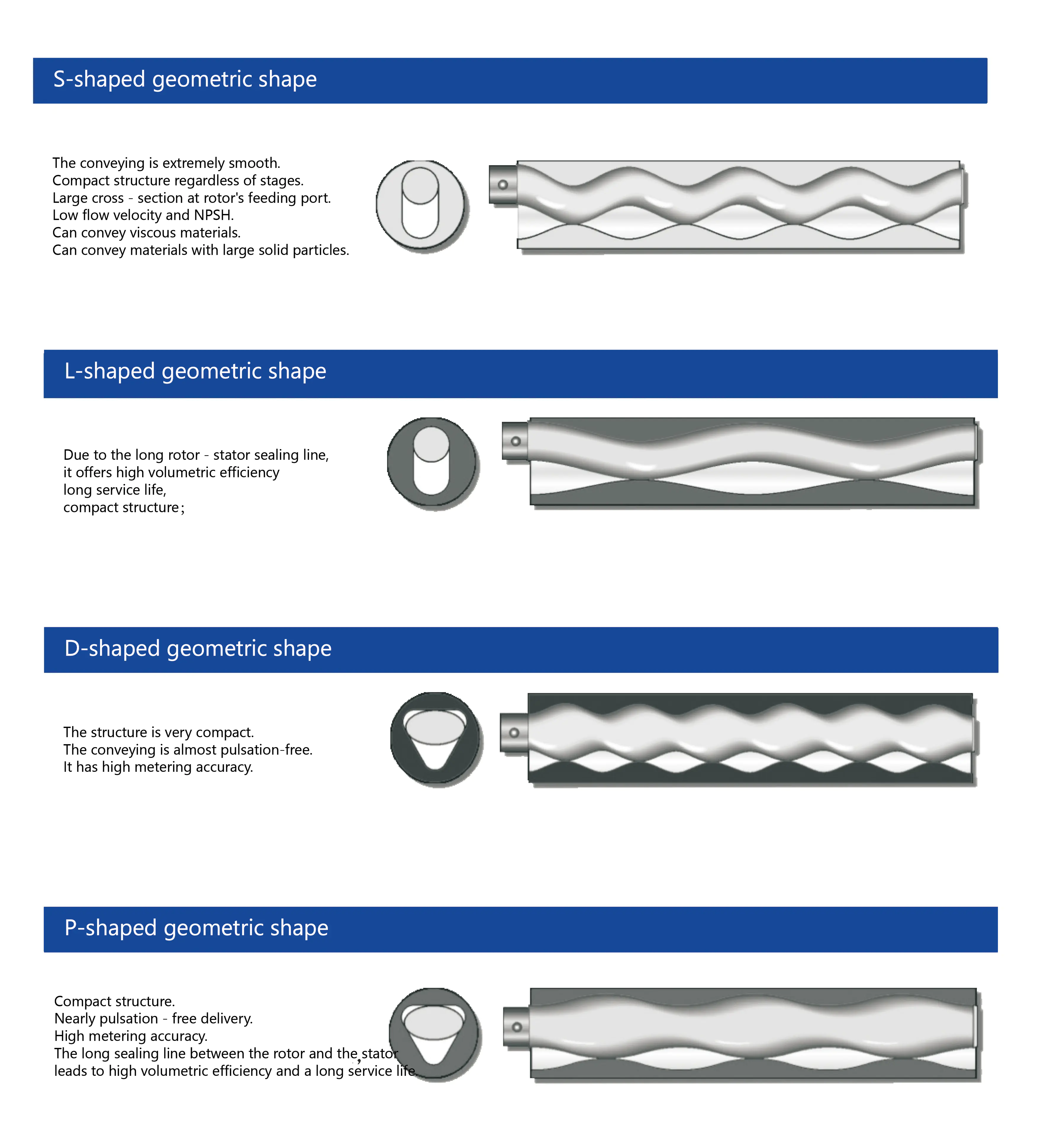

The NC type Open Top Type Single Screw Pumps, is a progressive cavity pump. Its main components are the rotor and the stator. The rotor is a screw with a large lead, high teeth, and a small helix inner diameter, and it has a specific cross - sectional shape. The stator is a matching screw sleeve. The two form a liquid - storage space. When the rotor rotates, the medium is transported axially from the suction end to the discharge end.

Product Features

● Compared with centrifugal pumps: The single-stage screw pump does not require the installation of inlet and pressure - end valves, and its flow rate is in a stable linear flow.

● Compared with piston pumps: The TPNC - type pump has self - priming ability, and its suction lift can reach up to 8.5 meters of water column.

● Compared with diaphragm pumps: The Spiral pump can transport various mixed impurities, media containing gases, solid particles or fibers, and can also transport various corrosive media.

● Compared with gear pumps: The TPNC - type pump can transport high - viscosity media.

● Compared with piston pumps, diaphragm pumps, and gear pumps: The NC - type pump can be used for pharmaceutical filling and metering

Application Fields

● Petroleum industry: Extracting and transporting mixtures of crude oil, heavy oil, gas, and sand in oil fields.

● Chemical industry: Transporting various materials such as synthetic fiber liquids, viscose liquids, oils, and suspensions.

● Paper - making industry: Transporting pulp of different concentrations, cotton pulp, straw pulp, as well as coatings, heavy oil, etc.

● Food industry: Transporting food raw materials, sauces, dairy products, fruit juices, etc. In wineries, it is used to transport diatomite malt slurry and other liquids.

● Environmental protection industry: Transporting concentrated sludge, lime milk, auxiliary agents, etc.

● Other industries: In ships, it is used to transport fuel oil, load and unload materials; in the construction industry, it is used to transport mortar, etc.; in coal mines, it is used to transport coal - water slurry and agents.
