Teffiko Multi Stage Centrifugal Pumps: High-Quality Solutions for Industrial Needs

When industrial operations require high-pressure, reliable fluid transfer—whether in oil & gas, chemical processing, or power generation—Teffiko’s multi stage centrifugal pumps stand out as the benchmark of performance. Take the API 610 Type BB4 Single-Casing Ring-section Multistage Pump (Structure G) as an example: every detail is engineered to tackle extreme working conditions while delivering long-term efficiency. Let’s break down why Teffiko pumps are the first choice for industrial professionals.

1. Robust Structure: Built for Stability & Pressure

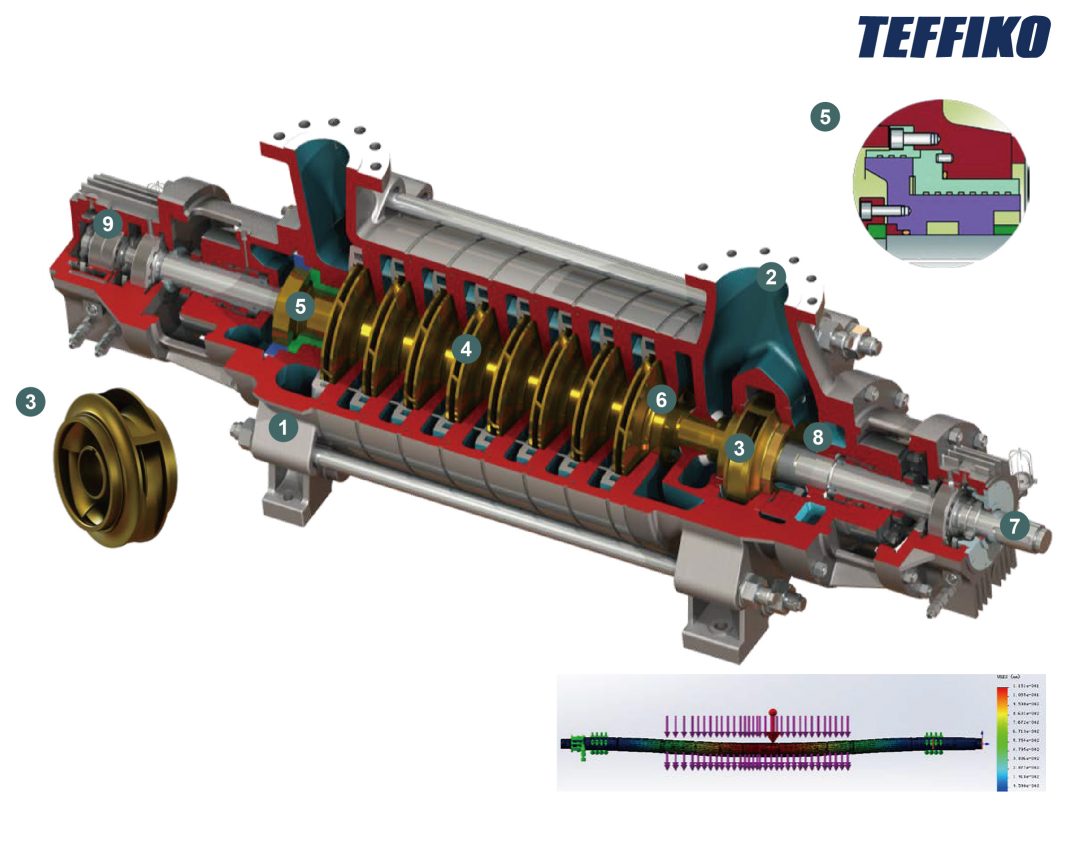

The Teffiko multi stage pump starts with a casing support system (Structure 1) that offers two mounting options: foot or centerline. For large, high-pressure setups, centerline mounting ensures structural stability even under intense operating loads—critical for minimizing vibration and extending pump lifespan.

Plus, the variable nozzle arrangement (Structure 2) lets you tailor the pump to specific application needs: whether you’re handling corrosive chemicals or high-temperature boiler feedwater, the flexible design adapts to your workflow without compromising performance.

2. Precision Components: Efficiency Meets Durability

At the heart of the pump are closed impellers (Structure 3)—dynamically balanced and individually secured to eliminate operational wobble. For systems with low suction pressure, Teffiko even offers an optional first-stage double suction impeller to reduce NPSH (Net Positive Suction Head) requirements, preventing cavitation and protecting the pump from damage.

The in-line impellers arrangement (Structure 4) works with a hydraulic thrust balancing mechanism (Structure 5: a balance drum-disc-drum design) to neutralize axial thrust. This not only reduces wear on bearings but also ensures smooth operation even under extreme pressure—a game-changer for 24/7 industrial cycles.

3. Low Maintenance, High Availability

Industrial downtime costs money—and Teffiko designs its pumps to minimize it:

• Replaceable wear rings (Structure 6) cut maintenance costs and reduce downtime: swap them out quickly instead of overhauling the entire pump.
• The stiff shaft design (Structure 7) boasts a critical speed higher than the running speed, so shaft deflection is kept to a minimum. The stepped, small shaft and API-standard tapered end make seal maintenance fast and straightforward.
• API 610 standard seal chambers (Structure 8) ensure consistent pressure balance, while antifriction or slide bearings (Structure 9) with forced/oil bath lubrication keep the pump running smoothly for years.

Why Teffiko Multi Stage Centrifugal Pumps?

For industries that can’t afford unplanned stops or subpar performance, Teffiko delivers:

• Compliance with API 610 (the global standard for process pumps)
• Flexible design for diverse applications (oil & gas, chemical, power, water treatment)
• Long service life with minimal maintenance
• Precision engineering that handles high pressure and heavy loads

Whether you’re upgrading an existing system or designing a new one, Teffiko’s multi stage centrifugal pumps aren’t just equipment—they’re a reliable, long-term investment in your operation’s efficiency.
