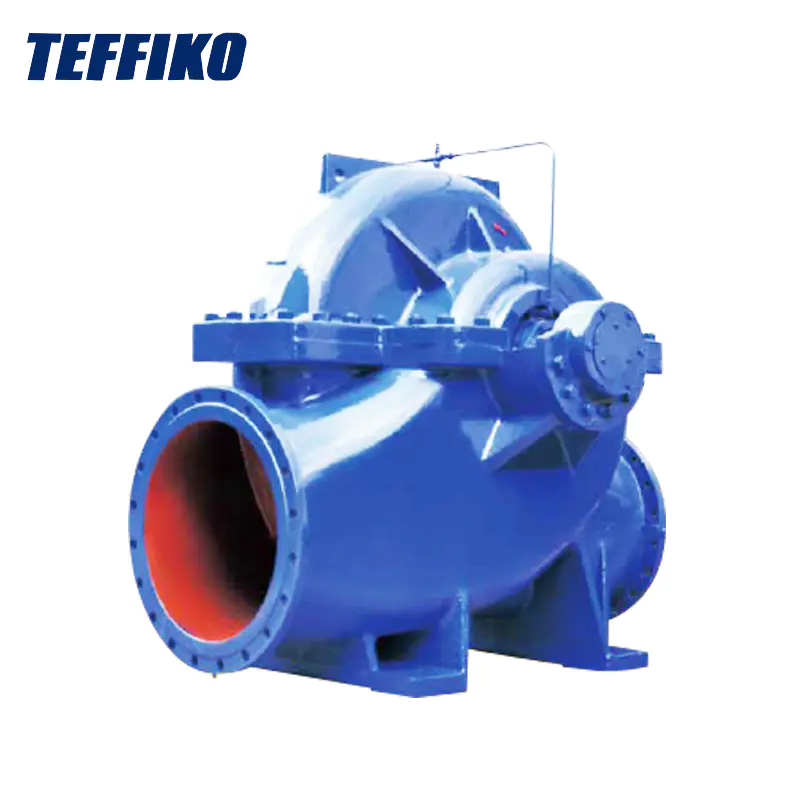

API Between Bearing Type Axial Split Centrifugal Pumps

The API Between Bearing Type Axial Split Centrifugal Pumps, are characterized by the following notable features: they have a comprehensive type spectrum for selection, excellent models with outstanding performance, a novel and reliable structure, convenient maintenance, and a long service life. These pumps can provide pumps that precisely meet the operating points of any flow rate and head required by users.

Product Features

● Impeller: The double-suction impeller is adopted to minimize the axial force.

● Pump Body: The double volute design is used to reduce the radial force, resulting in less stress on the bearing and a long service life.

● Shaft: The shaft is thickened, ensuring stable operation. It is fully sealed and easy to reverse.

● Bearings: Grease-lubricated rolling bearings are used, which are convenient to maintain and have a long service life.

● Shaft Seal: High-quality mechanical seals are used to prevent leakage. The shaft sleeve of the mechanical seal is made of stainless steel to avoid corrosion.

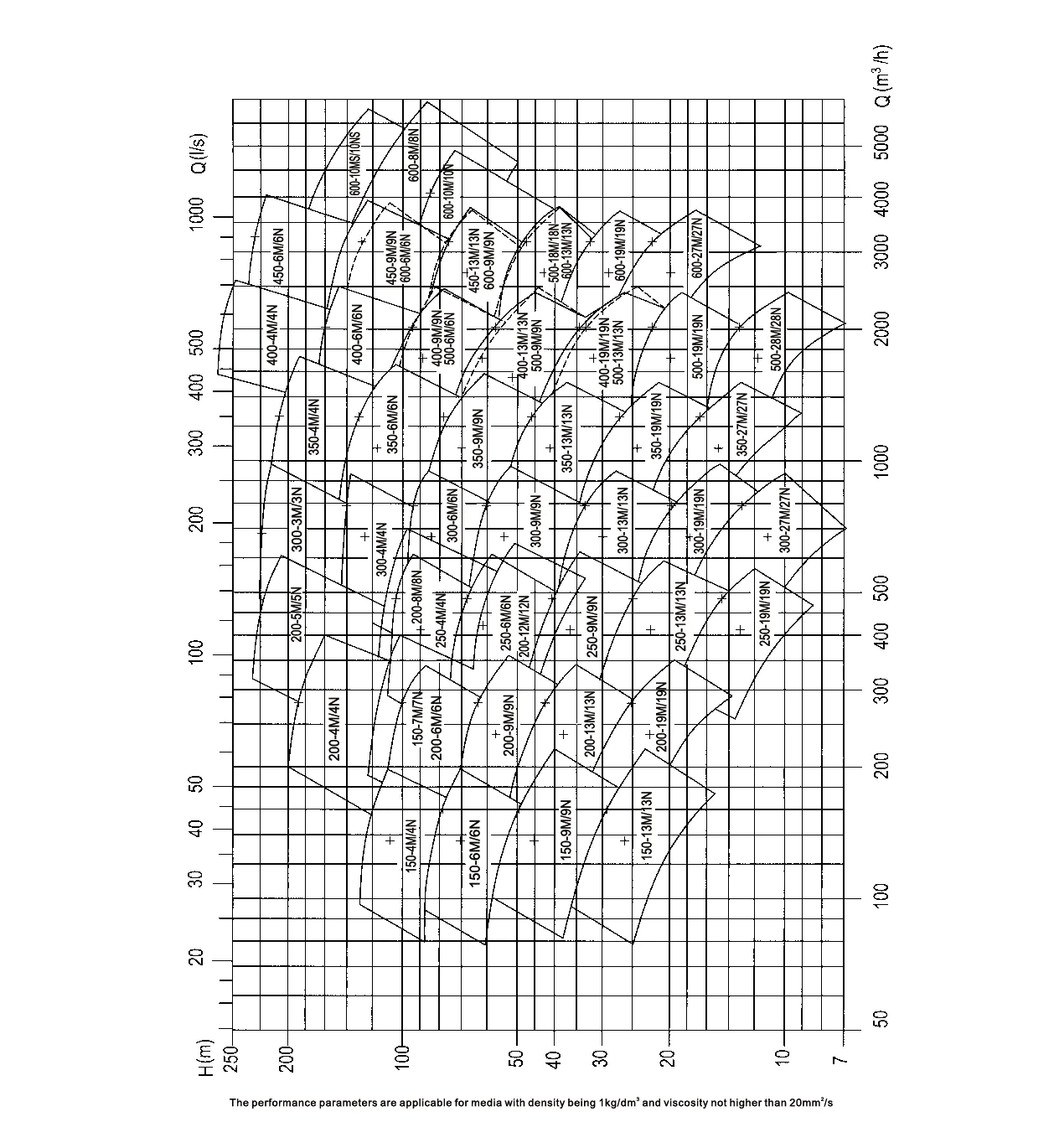

● Base: Welded steel bases can be provided according to requirements. They are impact-resistant, have good toughness, and are lightweight and durable.Type Spectrum Diagram

Application Fields

1. Urban Drainage: It can quickly drain accumulated water during rainstorms to prevent waterlogging and stably transport sewage in wastewater treatment plants, ensuring smooth urban drainage.

2. Urban Water Supply: It extracts water from water sources and boosts the pressure in the water supply network to ensure sufficient and evenly pressurized water supply in urban areas.

3. Airport Construction: The double entry centrifugal pumps are responsible for draining water from runways to ensure flight safety. They also supply water for the daily operation of airport facilities.

4. Chemical Fiber Plants: It transports process water and promotes the circulation of cooling water to maintain equipment temperature, facilitating chemical fiber production.

5. Textile Mills: Double suction centrifugal pumps supply water for printing and dyeing to promote production and adjust the water for air - conditioning humidification to stabilize the humidity in the workshop.

6. Petrochemical Refineries: It transports crude oil over long distances and safely conveys various chemical materials to ensure the operation of the refining process.

Operating Conditions

● Flow Rate: 68 - 3975 cubic meters per hour

● Head: 6 - 230 meters

● Inlet and Outlet Diameters: 150 - 600 mm

● Temperature Range: Maximum liquid temperature ≤ 80°C - 120°C

● Ambient Temperature: Not exceeding 40°C

● Maximum Working Pressure: 1.0 MPa(G) (Hsp ≤ 75m) or 1.6 MPa(G) (Hsp > 75m). Special configurations can reach 1.6 MPa(G) or 2.5 MPa(G) respectively.

● Rotational Speed: 2960 revolutions per minute, 1480 revolutions per minute

● Permissible Transport Media: Clean water. If the medium is other liquids, please contact our company.
