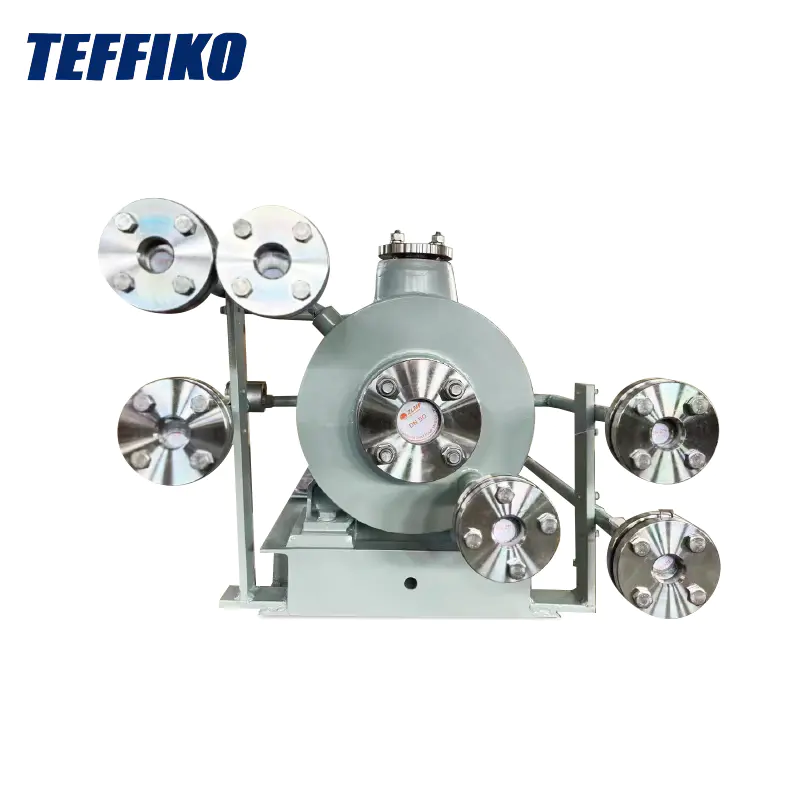

The TEFFIKO T2LP series of API OH1 Horizontal Centrifugal Pumps for Heat Preservation for insulation are suitable for transporting media with requirements for maintaining a certain temperature at the freezing point (or crystallization point), including neutral or corrosive media, those containing solid particles, toxic media, and flammable and explosive media.
● Insulated Pump Body: Combines with the insulated pump cover to maintain a constant temperature and is supported by feet.
● Impeller: Closed type. Axial force is balanced by balance holes or auxiliary vanes, and the remaining force is borne by the bearings.
● Insulated Pump Cover: Forms a standard seal chamber with the insulated seal gland, maintaining a constant temperature and being compatible with various seals.
● Shaft Seal: Depending on the working conditions, packing, single and double end face, and tandem mechanical seals can be selected.
● Bearings: Lubricated with thin oil. The constant level oil cup controls the oil level to ensure good lubrication.
● Shaft: Protected by a shaft sleeve to prevent corrosion and extend the service life.
● Rear-supported Design: Protected by a shaft sleeve to prevent corrosion and extend the service life.

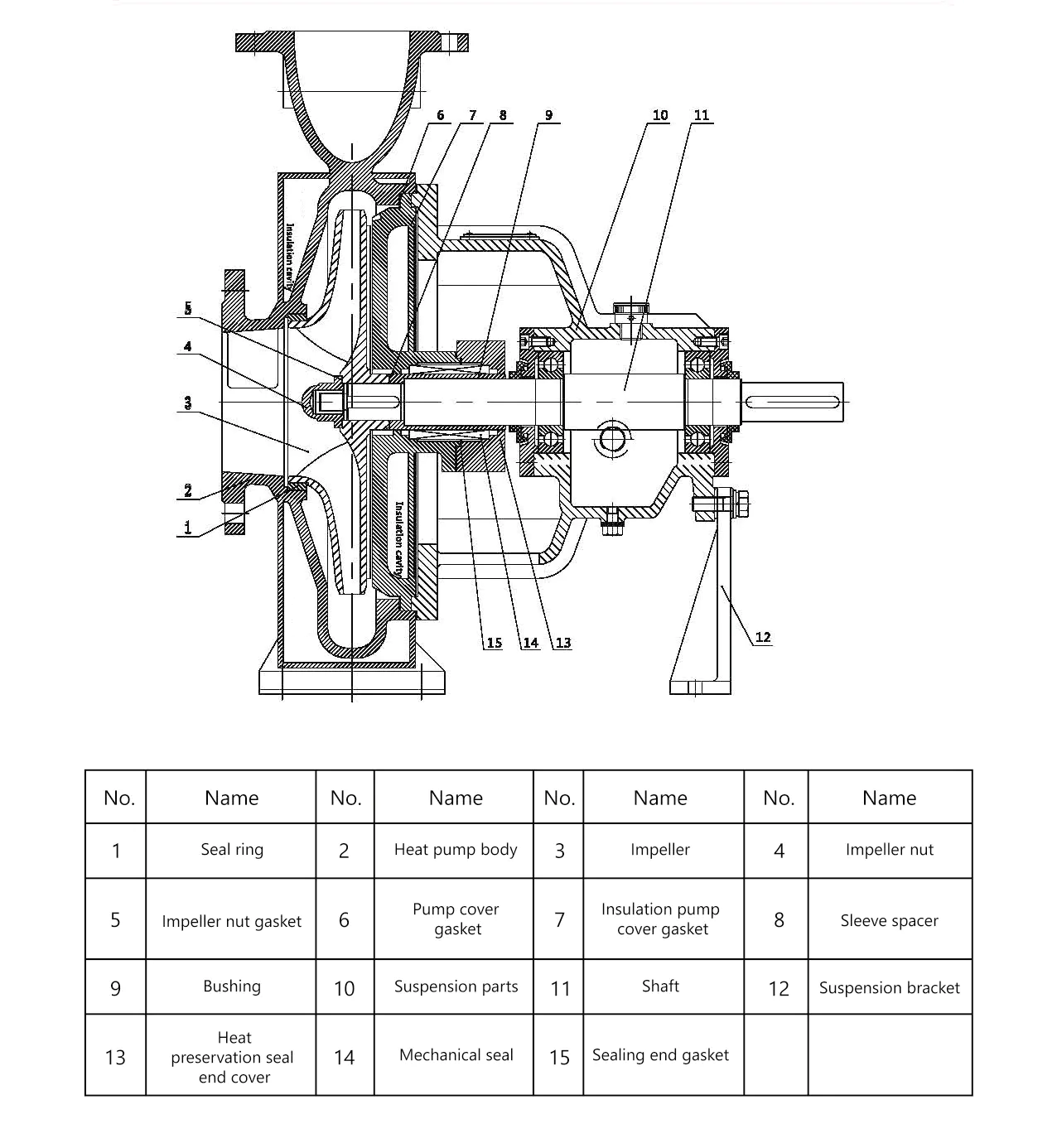

T2LP Centrifugal Pump Diagram
Application Areas
● Petrochemical Industry: Transportation of high-temperature crude oil, heavy oil circulation, and asphalt insulation.
● Fine Chemical Industry: Constant-temperature transportation of molten sulfur and liquid phenolic resin.
● Pharmaceutical Field: Aseptic insulation transportation of heat-sensitive APIs and syrup-like media.
● Sugar Industry: Used for the transportation of syrup, sugar paste, and molasses.
● Power Plants: For the transportation of boiler feed water, condensate water, and desulfurization and denitrification slurries.
● Paper Mills: For the transportation of high-temperature pulp, coating liquid, and white water.
Working Conditions
● Flow Rate: 2 - 2000m³/h
● Head: Up to 160m
● Pressure: ≤2.5MPa
● Temperature: - 40℃ - 260℃
● Rotation Speed: 1450rpm/min, 2950rpm/min
