Both single screw pumps and twin screw pumps belong to positive displacement screw pumps, but due to differences in structural design, they vary significantly in working principles, performance characteristics, and application scenarios. In the selection and application of screw pumps, TEFFIKO has always been committed to providing solutions that fit actual working conditions. Both single screw pumps and twin screw pumps can meet diverse conveying needs with their unique performances. To help customers make selections, TEFFIKO elaborates on the following aspects of core differences and application ranges:
I. Core Differences Between Single Screw Pumps and Twin Screw Pumps
1. Structure and Working Principle

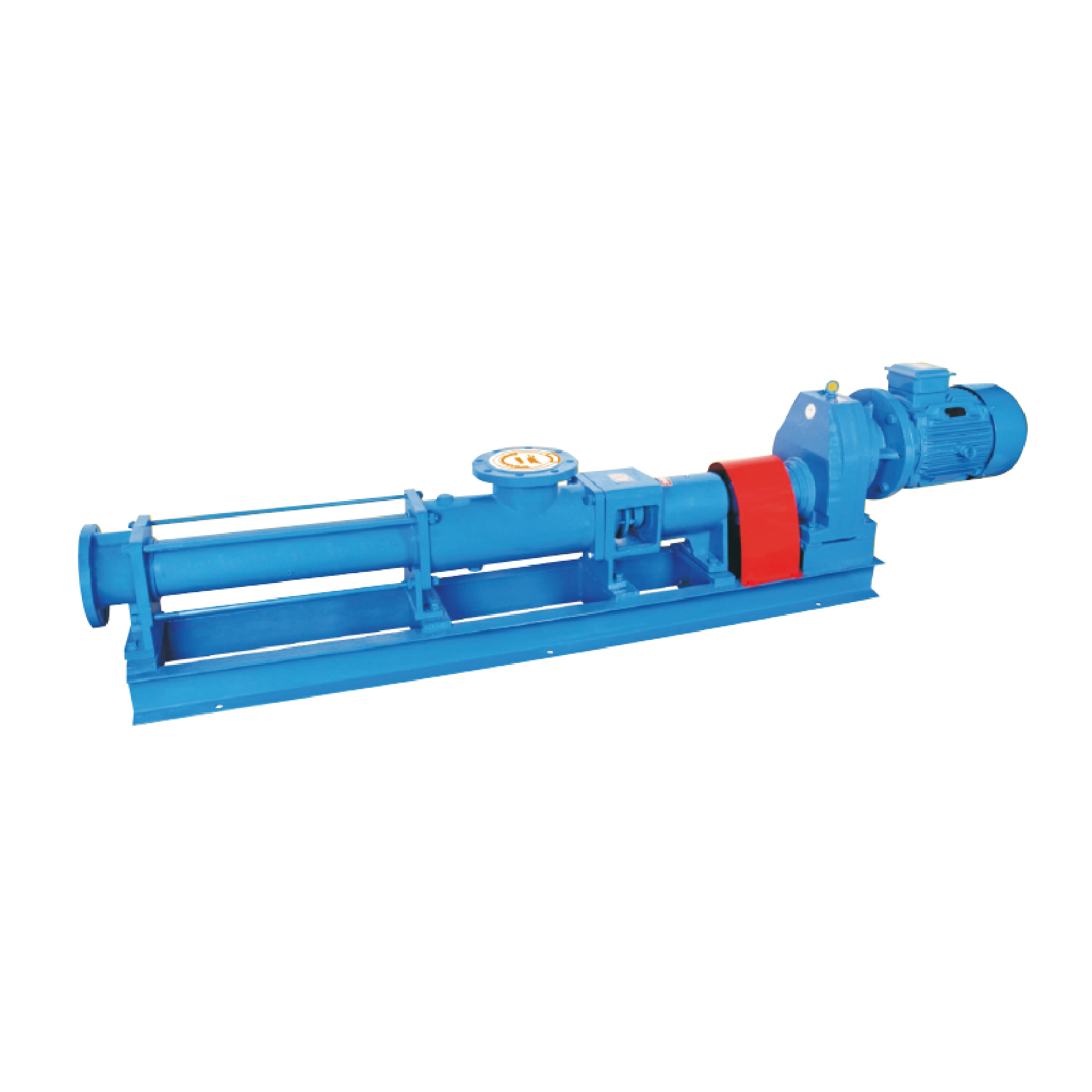

Single Screw Pump:
It consists of a screw and an elastic stator. When the screw rotates inside the stator, they mesh to form a closed spiral chamber, and the medium is continuously pushed to the outlet, achieving sealing through the elastic deformation of the stator.
Core feature: It relies on the flexible sealing of the elastomer and has a simple structure.
Twin Screw Pump:
It is composed of two intermeshing screws, which are driven by a synchronous gear to rotate in opposite directions. It uses the meshing gap of the screws to form a closed chamber for medium delivery, belonging to rigid sealing.
Core feature: It requires a synchronous gear to ensure precise meshing of the screws, with a more complex structure including auxiliary components such as a gearbox and bearings.
2. Core Advantages and Limitations
Single Screw Pump:
Advantages: It has extremely strong anti-clogging performance and can transport media containing a large number of particles and fibers; it has excellent self-priming ability and does not require priming; its structure is simple and the maintenance cost is low.
Limitations: The elastic stator is prone to aging or swelling under the influence of high temperature and strong solvents; the flow rate is small with slight pulsation; the pressure upper limit is low.
Twin Screw Pump:
Advantages: It has a large and uniform flow rate; it has good temperature and pressure resistance, suitable for high-temperature and high-pressure working conditions; the metal structure has strong solvent resistance and can transport various chemicals.
Limitations: It has high requirements on the cleanliness of the medium, and impurities are easy to wear the screws; the structure is complex, making maintenance difficult; its self-priming ability is weaker than that of the single screw pump.
II. Comparison of Application Ranges
1. Typical Application Scenarios of Single Screw Pumps
Municipal and environmental protection: Transportation of sludge and grid residue in sewage treatment; transportation of fecal liquid in septic tanks and food waste slurry.
Petrochemical industry (low-cleanliness scenarios): Transportation of drilling mud, oilfield sand-containing crude oil, oily sludge from refining, and waste alkali residue.
Food and agriculture: Transportation of high-viscosity and particle-containing materials such as jam, syrup, and tomato sauce; transportation of livestock manure and crop straw slurry.
Construction and mining industry: Transportation of concrete additives, ore slurry, and shield machine mud.
2. Typical Application Scenarios of Twin Screw Pumps
Petrochemical industry (clean / high-parameter scenarios): Long-distance transportation of refined crude oil and heavy oil; circulation of heat-conducting oil; transportation of polymer melts.
Energy and electric power: Transportation of heavy oil fuel in power plants; circulation and filling of precision oils such as lubricating oil and hydraulic oil.
Fine chemical industry: Transportation of high-viscosity and clean materials such as adhesives and resins; transportation of organic solvents and weakly corrosive liquids.
Shipping and metallurgy: Transportation of ship fuel oil; circulation of high-temperature heat-conducting oil and quenching liquid in the metallurgical industry.
III. Summary
The single screw pump is an "expert in extensive transportation", suitable for complex media with impurities, high viscosity, and low pressure, focusing on anti-clogging performance and low cost. The twin screw pump is a "main force in precision transportation", applicable to clean, medium-high viscosity, high-temperature, and high-pressure media, emphasizing flow stability and high-parameter adaptability. Single screw pumps and twin screw pumps each have their own strengths. TEFFIKO can match the most suitable type of screw pump for you according to your specific medium characteristics, process parameters, and other needs, ensuring efficient and stable transportation processes and providing reliable guarantees for production operations.
