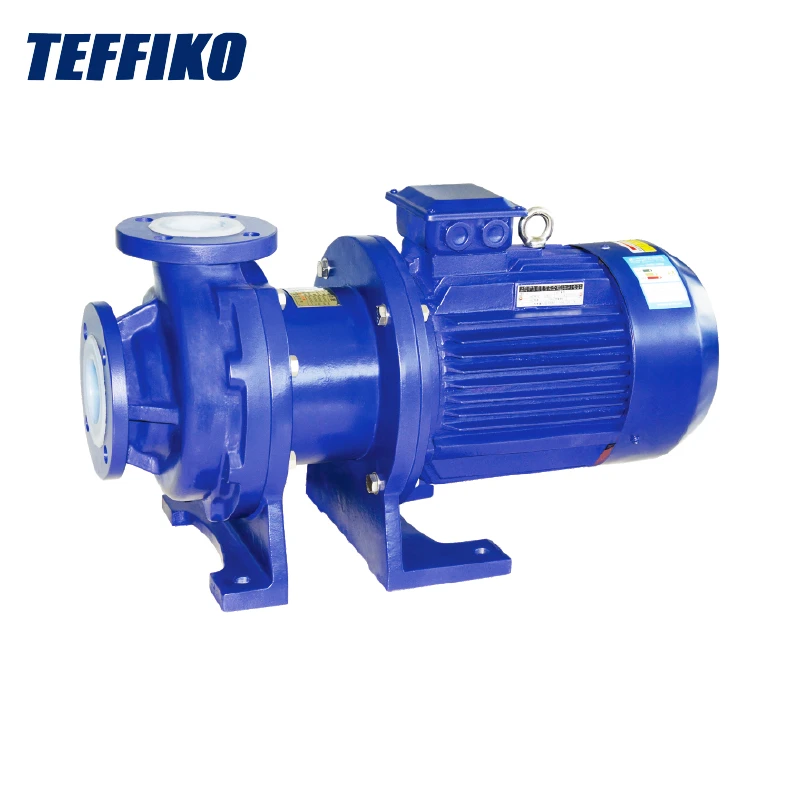

Fluoroplastic Corrosion Resistant Magnetic Pump

With the increasing popularity of environmental protection concepts and the implementation of relevant regulations, TEFFIKO has introduced the TMP Fluoroplastic corrosion resistant magnetic pump. Thanks to its excellent design and high - quality material selection, this pump provides users with a reliable and efficient solution.

1.Suitable Material Selection: The pump body lining, inner rotor of the impeller, etc. are molded from pure F46 material, which is highly corrosion - resistant and free of impurities. The pump shaft, bearing sleeves, etc. are made of pressure - less sintered silicon carbide, which is wear - resistant and corrosion - resistant. Neodymium - iron - boron material is selected for the inner and outer magnets, with excellent magnetic properties.

2.Excellent Performance: The pump body shell is made of ductile iron and designed according to national standard flanges, with high mechanical strength. The flow - through parts are lined with F46, with excellent hydraulic performance. The spiral groove design in the bearing sleeve is conducive to lubrication and heat dissipation. The PPS reinforcing cover outside the isolation sleeve can withstand high system pressures and eliminate the heat generated by magnetic eddy currents in metal sleeves.

3.Convenient Maintenance: It adopts a rear - pull - out structure, allowing a single person to easily perform internal maintenance and component replacement without the need to disassemble the pipeline.

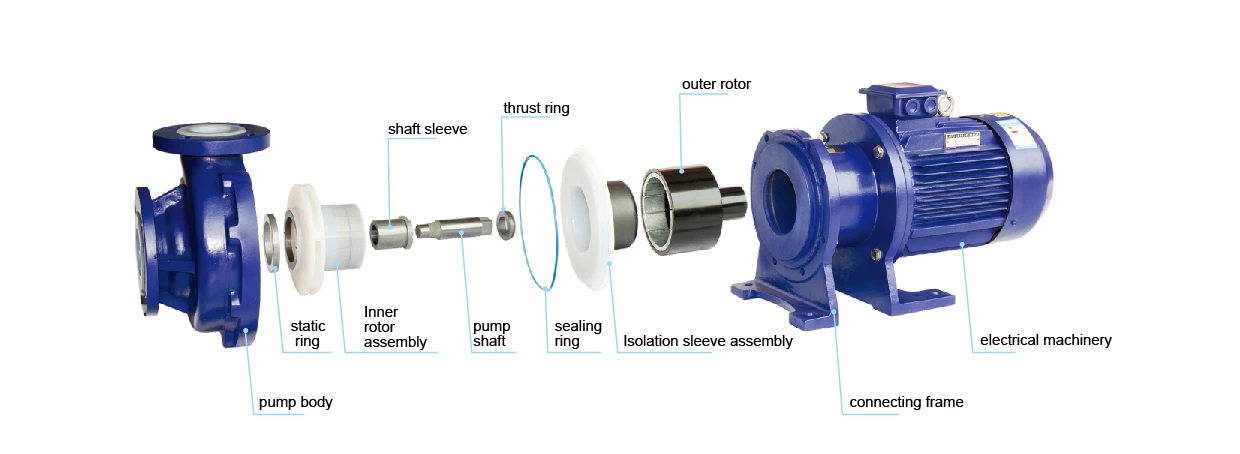

Fluorine - lined magnetic pumpStructure Diagram

Scope of Application and Purpose

The fluorine lined magnetic pump can transport strong corrosive media such as sulfuric acid, hydrochloric acid, nitric acid, strong alkalis, aqua regia, hydrofluoric acid, strong oxidants, and reducing agents at any concentration, without suspended particles and at a temperature below 100°C, without being damaged. It is the first choice for industries such as chemical engineering, petroleum, oil refining, nuclear power, chemical products, electroplating, electrolysis, chemical fiber, fertilizer, pharmaceuticals, nuclear power, highly toxic substances, flammable and explosive substances, and other valuable liquid processing industries.
