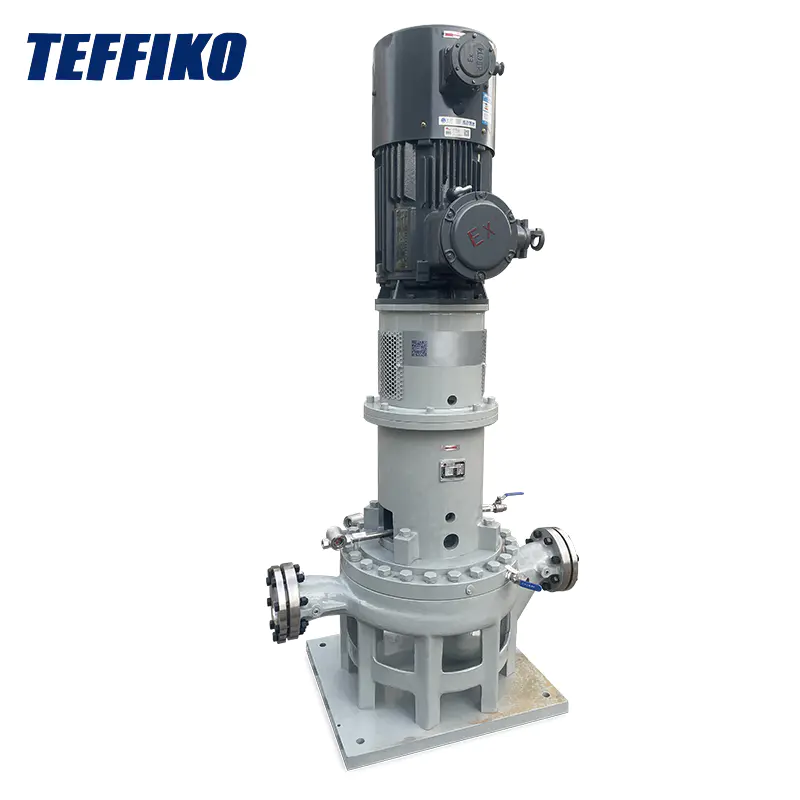

API OH3 Vertical Chemical Process Pumps

The TEFFIKO TGDP series of API OH3 cantilever vertical centrifugal pumps are suitable for transporting clean or slightly contaminated media. With a compact vertical layout, the motor is directly connected to the pump body, reducing the floor area by 60% compared to horizontal pumps.

● Impeller: It has a single - suction, radial, and closed - type structure, equipped with replaceable impeller wear rings and casing wear rings, which can save the cost of maintenance spare parts.

● Shaft Seal: Depending on different working conditions, packing seals can be flexibly selected.

● Pump Body: Radially split, sealed with a restricted gasket between the pump body and the pump cover. Pump bodies with a diameter of over 80 mm adopt a double - volute design.

● Pump Cover: A cooling chamber can be configured when necessary to cool the shaft seal chamber.

● Bearings: Lubricated with grease, there is a grease filling cup on the bearing cover, and the bearing bracket is normally designed without a cooling function.

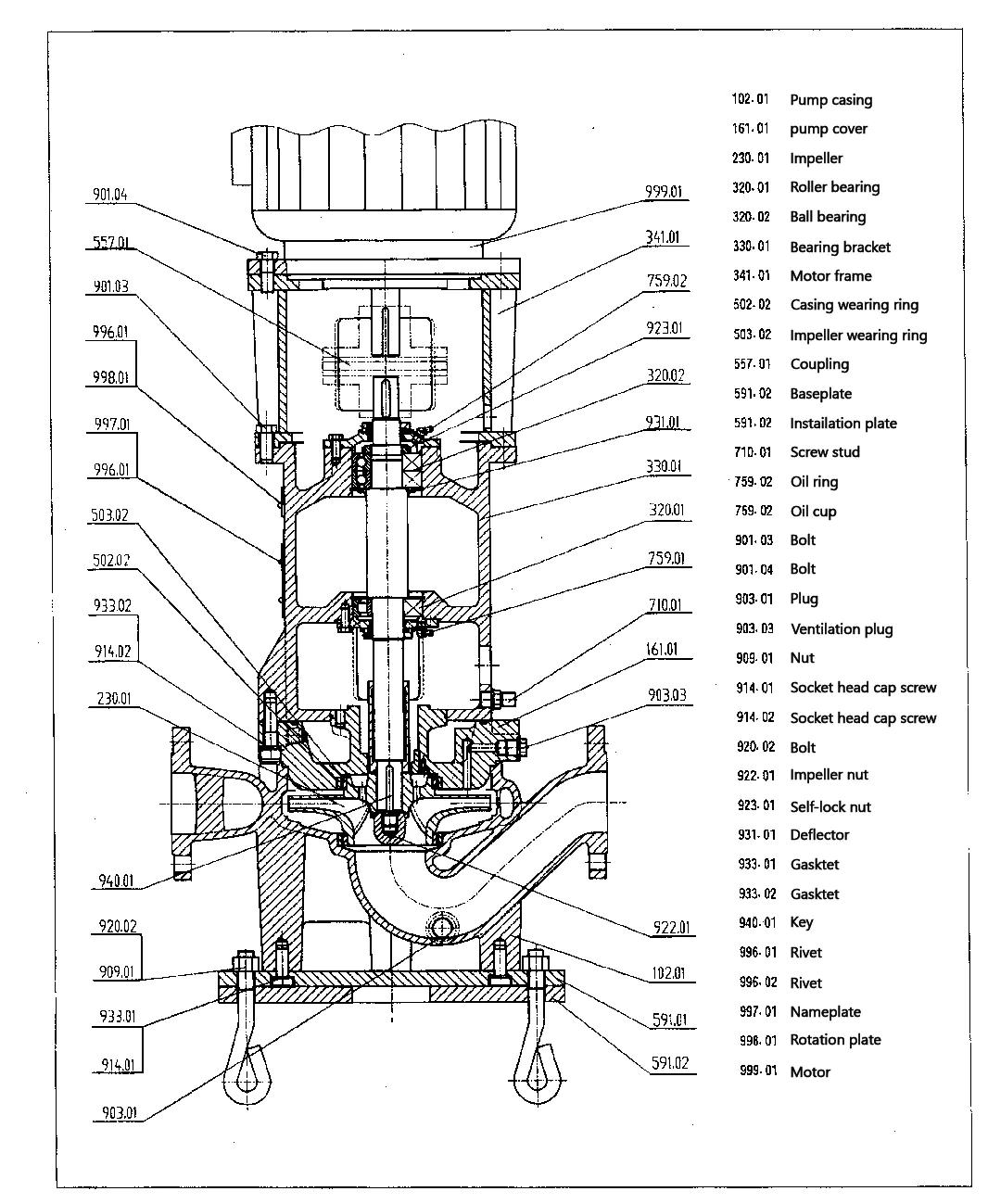

Vertical Chemical Process Pump Schematic Diagram

Application Areas

1. Cryogenic Factories: Used to transport cryogenic media such as liquid ammonia and liquid nitrogen. The pump has excellent sealing performance and can adapt to low - temperature environments, ensuring the refrigeration system works properly, maintaining a low - temperature environment, and guaranteeing the freezing and storage quality of food.

2. Coal Mining Industry: Used to handle mine water containing impurities and corrosive substances. The pump is wear - resistant, corrosion - resistant, and has a large flow rate, ensuring coal mining safety. It is also used in coal washing to assist in efficient separation.

3. Power Plants: Used for boiler water make - up to meet the water demand; used in desulfurization and denitration systems to reduce harmful gas emissions. With stable performance, it ensures the continuous operation of power plants.

4. Marine Industry: The vertical centrifugal pump is resistant to seawater corrosion. It can transport various media on offshore platforms and is used to convey seawater and fresh water during seawater desalination.

Working Conditions

● Flow rate: 2 - 2600 m³/h

● Head: 0 - 250 m

● Pressure: ≤2.5 MPa

● Temperature: - 20°C - 250°C

● Maximum Rotational Speed: 2900 rpm/min
