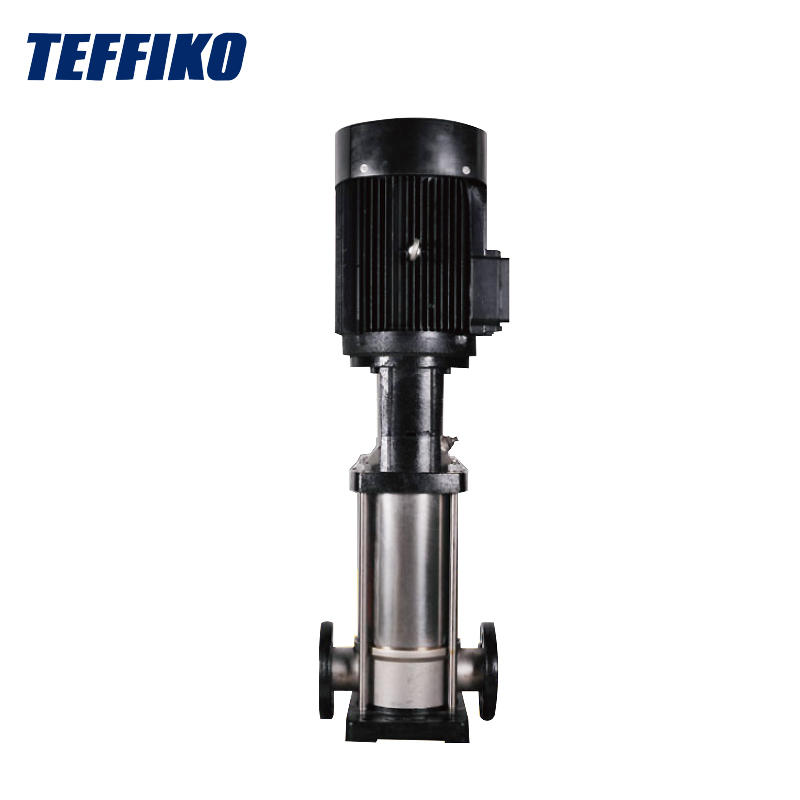

Installation Notes for Stainless Steel Centrifugal Pumps

In industries such as chemical engineering and food processing, stainless steel centrifugal pumps serve as "reliable assistants" for liquid transportation. They feature corrosion resistance and wide applicability. However, improper installation can lead to issues ranging from minor seal leaks to major pump vibration failures, affecting production and increasing costs. The following details the installation process from preparation to maintenance.

I. Pre-Installation Preparations

1. Document Preparation: Study the pump's instruction manual, installation handbook, and other technical documents to clarify the model, parameters, and installation requirements. Collect on-site pipeline layout plans, foundation design drawings, and other materials to assess the site's suitability for pump installation.
2. Equipment Inspection: Check the pump body, impeller, and other components for damage or corrosion. Verify that accessories (anchor bolts, seals, etc.) are complete and meet material specifications. Prepare suitable pipelines, valves, fasteners, and sealing materials.
3. Foundation Acceptance: Measure the foundation's elevation, dimensions, and anchor bolt hole deviations. Check the concrete strength and flatness to prepare for secondary grouting.

II. Installation Process

1. Pump Positioning and Alignment: Use lifting equipment to hoist the pump body onto the foundation and insert anchor bolts. Align the pump's horizontal and vertical centerlines with the reference lines (deviation ≤5mm), adjust the elevation (deviation ≤±5mm) using shims, and ensure the levelness (transverse/longitudinal deviation ≤0.1mm/m) with a level.
2. Pipeline Connection: Prefabricate pipelines using mechanical cutting (e.g., pipe cutters) and adopt argon arc welding for stainless steel pipes to prevent spatter and oxidation. Clean the pipes after fabrication. Use flexible connections (metal hoses or rubber joints) at the inlet/outlet to reduce pipeline stress, install supports and compensators, and arrange valves, gauges, and filters reasonably.
3. Seal and Lubrication System Installation: For mechanical seals, clean the seal chamber, inspect the seal faces, and ensure proper installation. For packing seals, use suitable packing with 45°-cut rings installed with 90°-180° staggered joints. Clean the lubrication system, add lubricant, and debug the forced lubrication circuit.
4. Coupling Installation: Assemble the coupling halves onto the pump and motor shafts, ensuring proper key fitting. Use a dial indicator or laser aligner to measure radial (≤0.05mm) and axial (≤0.1mm) deviations, adjust the motor position, and recheck after tightening.

III. Post-Installation Debugging

1. System Inspection: Review connections for tightness and check the pump body and pipelines for damage. Conduct a pressure test on pipelines (1.5× working pressure, ≥0.6MPa), controlling chloride ion content for stainless steel pipes. Flush or clean the pipes after passing the test. Verify motor wiring, grounding, insulation resistance (≥1MΩ), and rotation direction.
2. Pre-Commissioning Preparations: Confirm proper lubrication, unobstructed seal cooling/flush systems, and complete pump priming to prevent air binding.
3. Commissioning:

• No-Load Test: Run for 10–30 minutes, checking vibration (velocity ≤4.5mm/s), noise, and bearing temperature (sliding bearing ≤65°C, rolling bearing ≤75°C).
• Load Test: Operate for ≥2 hours, adjust flow rate, record parameters, and compare with performance curves. Stop immediately to troubleshoot issues like excessive vibration, abnormal noise, or seal leaks.

IV. Post-Installation Maintenance

(1) Protection for Unused Pumps

Seal the inlet/outlet to prevent debris entry, clean the pump body and apply rust inhibitor, store in a dry and ventilated area, and inspect regularly. Add protective covers or ventilation equipment in harsh environments.

(2) Routine Maintenance

Monitor operating parameters (pressure, flow, temperature), seal leaks, bearing vibration, and lubrication status during operation, especially for pumps handling corrosive media. Regularly shut down for comprehensive inspections, replacing worn seals, bearings, and other components, and cleaning the pump body.

(3) Special Working Conditions

• High-Temperature Pumps: Preheat the pump body slowly (temperature difference ≤50°C) before startup to avoid thermal shock.
• Low-Temperature Pumps: Precool the pump and implement thermal insulation measures.
• Hazardous Media Pumps: Equip with explosion-proof motors and leakage alarms. Perform medium replacement and purging before maintenance to ensure safety.

Conclusion:

Proper installation of stainless steel centrifugal pumps requires thorough pre-installation preparation, standardized procedures, rigorous debugging, and consistent maintenance. Regular checks on lubrication, seals, and operating status extend service life and ensure production safety. Teffiko Fluid Transportation specializes in fluid conveying solutions, providing efficient, energy-saving, and corrosion-resistant industrial pumps. For further details, feel free to contact us for refinements.
