The impeller wear ring is an annular component installed between the impeller and the pump casing in equipment such as centrifugal pumps. It can reduce liquid leakage to improve efficiency, while protecting the impeller and pump casing and extending the service life of the equipment. It is used in centrifugal pumps and mixed-flow pumps in industries such as chemical engineering, water conservancy, and electric power.
Classified by structure: integral type (easy to install but needs to be replaced as a whole) and split type (only the worn part can be replaced separately);

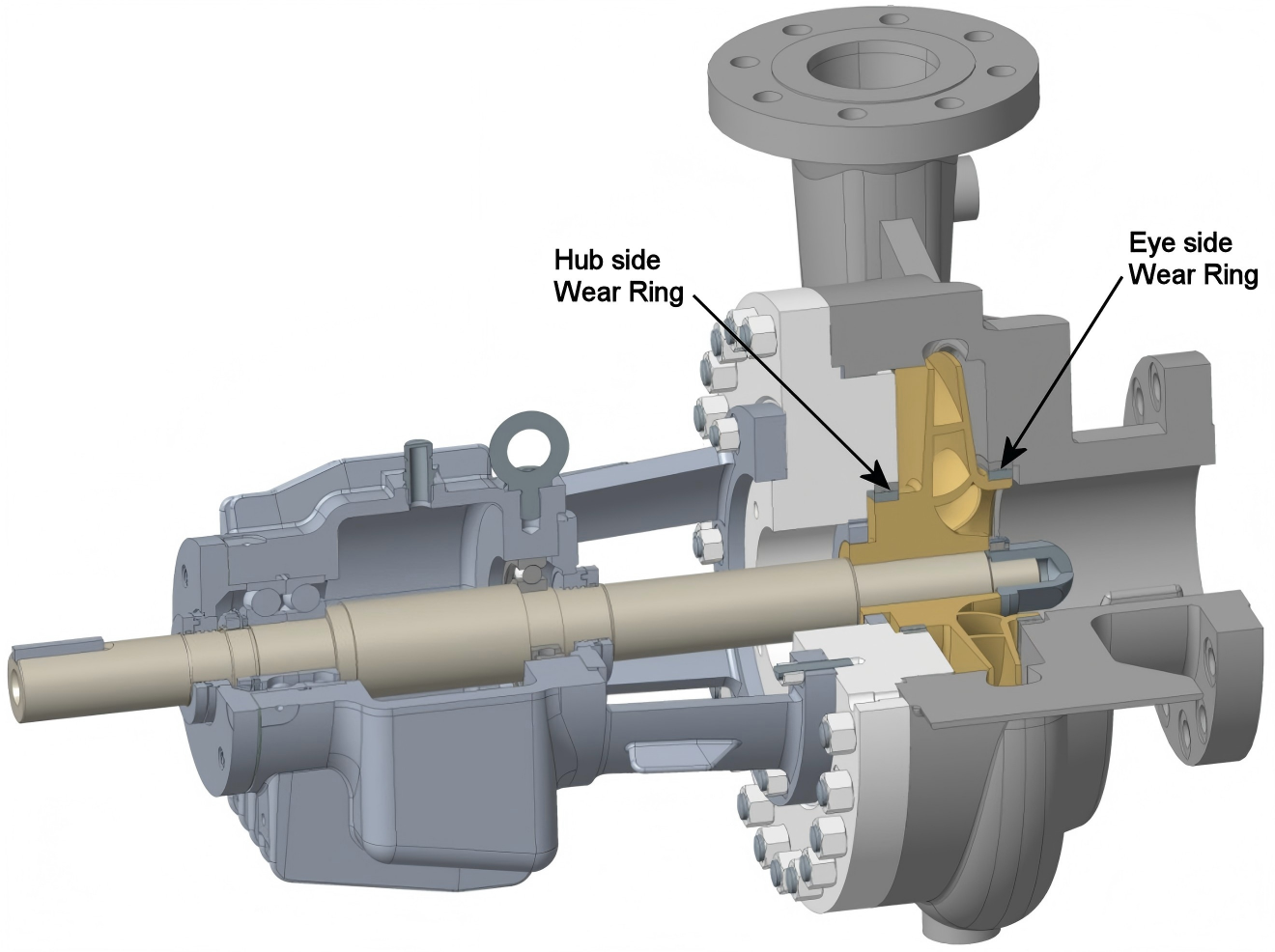

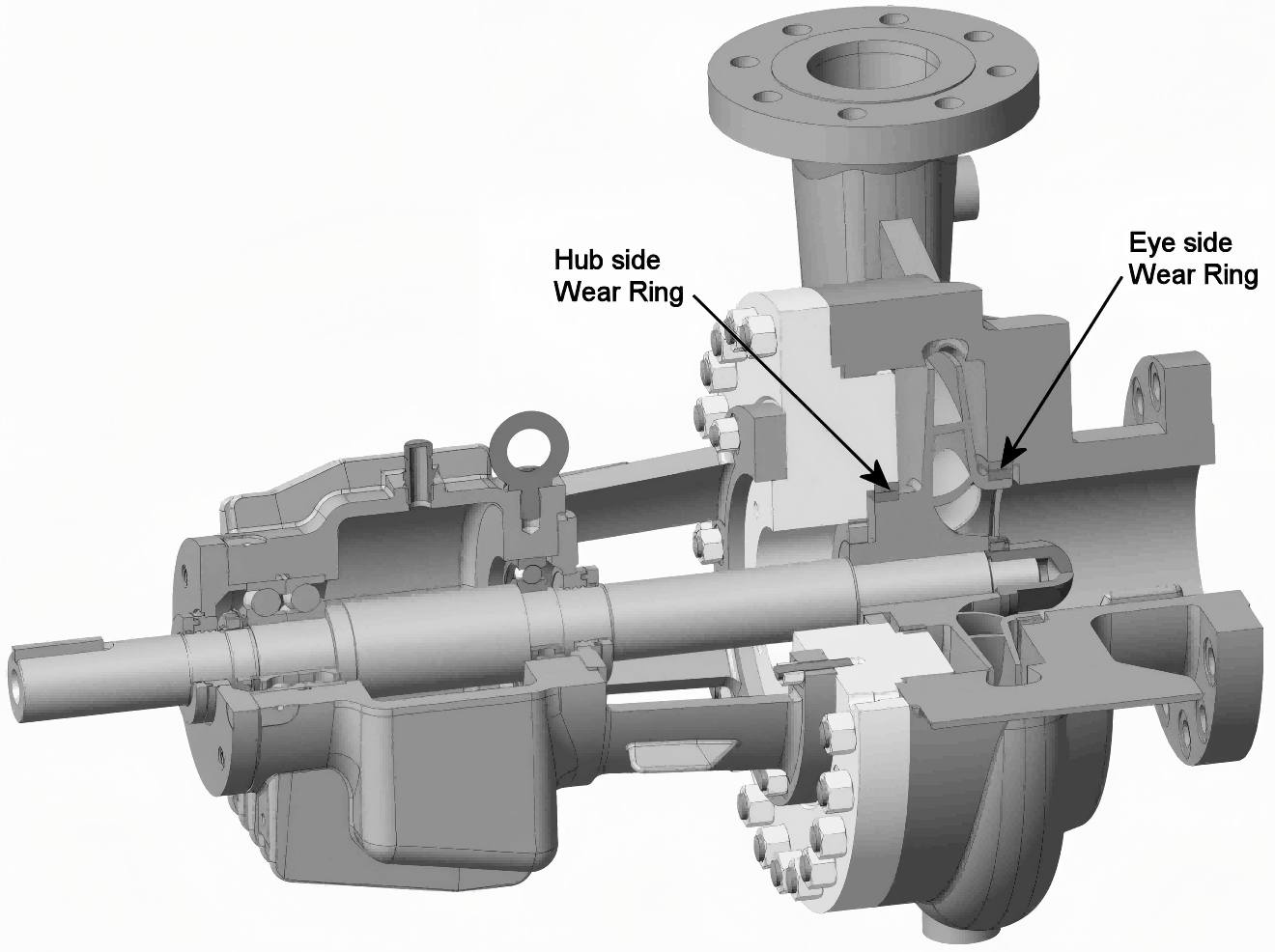

Classified by position: impeller side and pump casing side.
Materials are selected according to working conditions: metals such as cast iron (for ordinary working conditions), stainless steel (corrosion-resistant); non-metals such as rubber (for reducing vibration), engineering plastics (for light loads).
The core functions are "sealing" and "protection". When the centrifugal pump is running, there is a gap between the impeller and the pump casing. The wear ring helps minimize this gap, thereby reducing the leakage of liquid from the high-pressure area to the low-pressure area and ensuring efficient fluid delivery. At the same time, it comes into contact with particulate impurities in the liquid or bears vibration and friction first, preventing direct damage to the impeller and pump casing, thus reducing maintenance costs.
For regular inspections, visually examine the wear ring for signs of wear such as scratches, cracks, or deformation. Use a feeler gauge to measure the clearance between the wear ring and the impeller or pump casing. If the clearance exceeds the manufacturer’s recommended limit, significant wear has occurred and replacement may be necessary. Also check for loose fastening and clean away any surrounding debris or buildup. Inspection intervals can be scheduled monthly or quarterly depending on the operating intensity and environmental conditions of the equipment.
In daily use, regularly clean any debris or contaminants around the wear ring to prevent accelerated wear and corrosion. Monitor operational parameters such as pressure, flow rate, and vibration levels to avoid abnormal stress on the component. When the measured clearance exceeds the allowable range or if severe damage is observed, the wear ring should be replaced promptly. During replacement, ensure that the new wear ring matches the specifications, adjust the clearance properly, and perform a test run to verify correct installation and performance.
Proper selection of the wear ring should be based on equipment specifications and operating conditions. During installation, attention must be given to dimensional accuracy and proper alignment, as these directly affect both pump efficiency and the service life of the wear ring.
