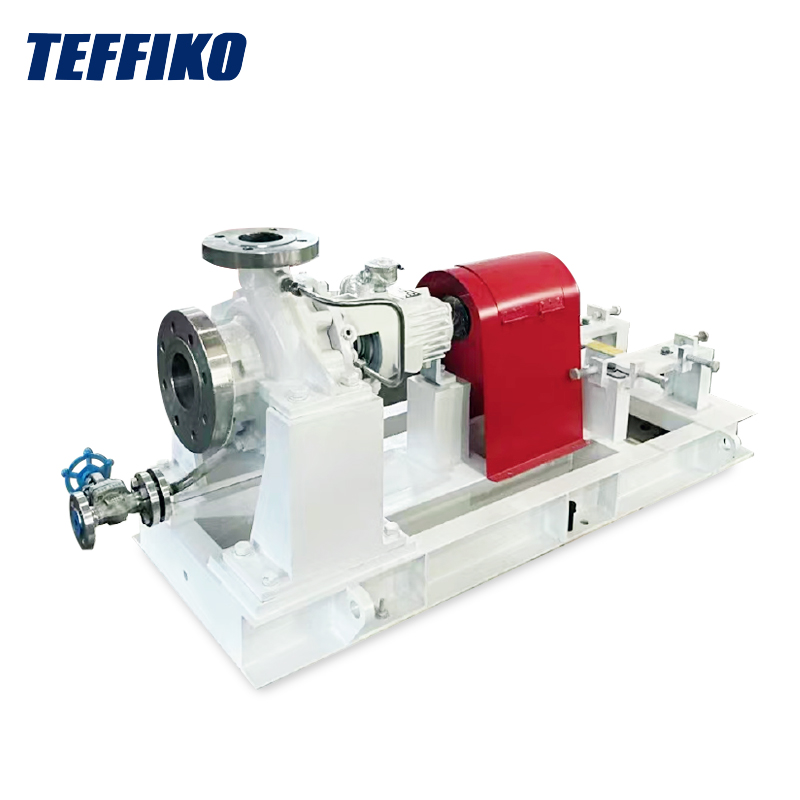

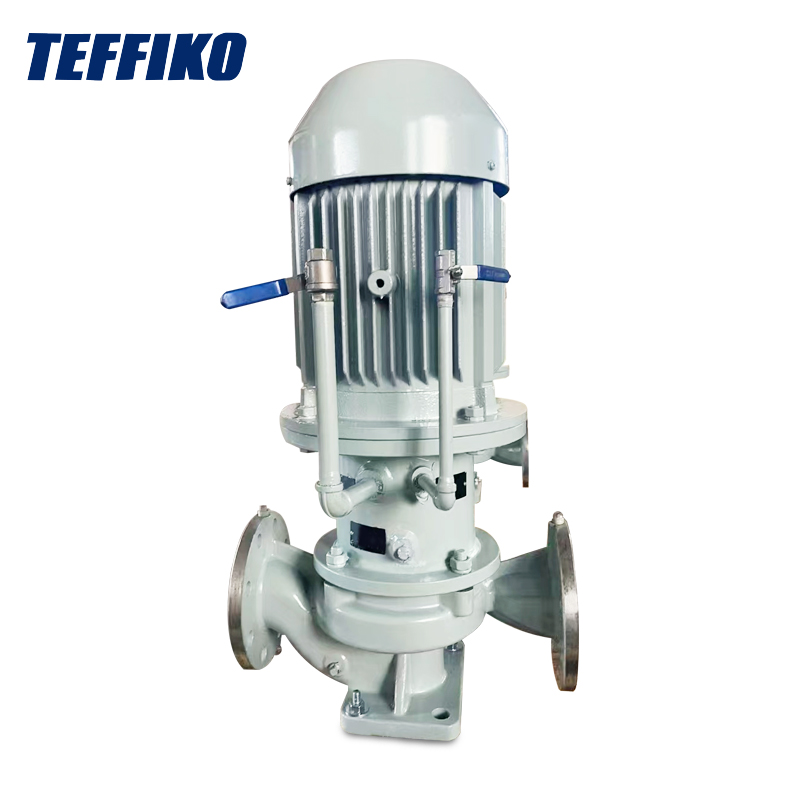

Centrifugal Pump Parts: The Building Blocks of Efficient Fluid Transfer

1.The Impeller: The Heart of the Centrifugal Pump

The impeller is perhaps the most crucial part of a centrifugal pump. It is a rotating component consisting of a series of curved vanes or blades attached to a central hub. When the pump is in operation, the impeller spins at high speeds, imparting kinetic energy to the fluid. As the fluid enters the space between the impeller vanes, it is pushed outward by centrifugal force, accelerating as it moves towards the outer edge of the impeller.

The design of the impeller plays a pivotal role in determining the pump's performance characteristics, such as flow rate, pressure head, and efficiency. Different impeller designs are tailored to specific applications. For instance, in applications requiring high - flow rates with relatively low pressure heads, open - impeller designs are often preferred. These impellers have vanes that are not enclosed on both sides, allowing for easier passage of fluids with suspended solids. On the other hand, closed - impeller designs, which have vanes enclosed on both sides, are more suitable for applications that demand higher pressure heads and handling of clean fluids.

2.The Pump Casing: Enabling Energy Conversion

The pump casing, also known as the volute or diffuser, serves as the enclosure for the impeller and is responsible for converting the kinetic energy of the fluid leaving the impeller into pressure energy. In a volute - type casing, the cross - sectional area gradually increases as the fluid moves towards the discharge port. This expansion causes the fluid velocity to decrease, and according to the principle of conservation of energy, the pressure of the fluid increases.

Diffuser - type casings, on the other hand, use stationary vanes to guide the fluid and achieve a more controlled conversion of kinetic energy to pressure energy. The shape and size of the pump casing are carefully engineered to ensure smooth fluid flow and minimize turbulence, which can lead to energy losses and reduced efficiency.

3.The Shaft and Bearings: Ensuring Smooth Rotation

The shaft is the component that connects the impeller to the motor or prime mover, transmitting the rotational energy required to drive the pump. It must be strong enough to withstand the mechanical stresses generated during operation and maintain precise alignment to prevent excessive vibration and wear.

Bearings play a crucial role in supporting the shaft and reducing friction as it rotates. There are different types of bearings used in centrifugal pumps, such as ball bearings and sleeve bearings. Ball bearings are typically used in applications where high - speed rotation and relatively light loads are involved, while sleeve bearings are more suitable for applications with heavier loads and lower speeds. Proper lubrication of the bearings is essential to ensure their longevity and smooth operation.

4.Seals and Gaskets: Preventing Leakage

Seals and gaskets are essential components of centrifugal pumps that prevent fluid leakage. Seals are typically used around the shaft to prevent the fluid from leaking out of the pump casing, while gaskets are used to create a tight seal between different parts of the pump, such as the pump casing and the cover.

There are different types of seals used in centrifugal pumps, including mechanical seals and packing seals. Mechanical seals are more reliable and offer better sealing performance, but they are also more expensive. Packing seals, on the other hand, are more cost - effective but require more frequent maintenance.

5.Wear Rings: Protecting the Pump Casing

Wear rings are installed in the pump casing to protect it from wear caused by the impeller. As the impeller rotates, it can come into contact with the pump casing, especially over time, leading to wear and tear. Wear rings act as sacrificial components, absorbing the wear and protecting the more expensive pump casing. They are relatively easy to replace, which helps to extend the lifespan of the pump and reduce maintenance costs.

In conclusion, each part of a centrifugal pump plays a vital role in its overall performance and efficiency. Understanding the functions and characteristics of these components is essential for selecting the right pump for a specific application, as well as for maintaining and troubleshooting the pump to ensure its long - term reliability. Whether you are in the market for a new centrifugal pump or need to replace parts for an existing one, Teffiko's team of experts is ready to assist you.
