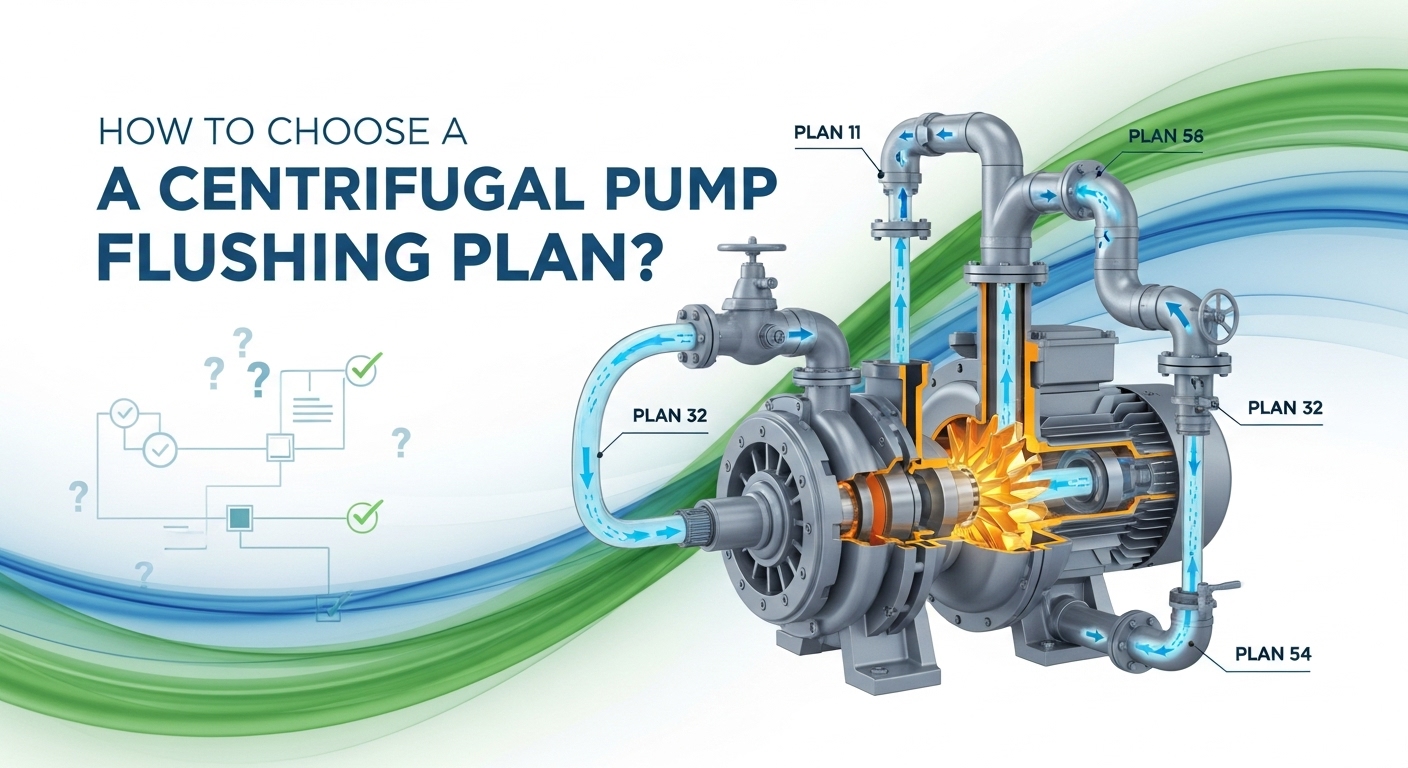

How to Choose a Centrifugal Pump Flushing Plan?

In chemical plants, refineries, and pharma facilities, it’s no exaggeration to say that 8 out of 10 pump failures—from minor leaks to full shutdowns or even safety incidents—trace back to one thing: a poorly chosen mechanical seal flushing plan.

This is especially true for “high-maintenance” pumps like those handling light hydrocarbons or abrasive slurries. For these applications, flushing isn’t just an add-on—it’s essential for reliable, safe operation.

Drawing on API 682 standards and years of hands-on field experience, this guide breaks down the most common flushing arrangements—from single seals to dry gas systems—so you can pick the right one the first time and avoid costly downtime.

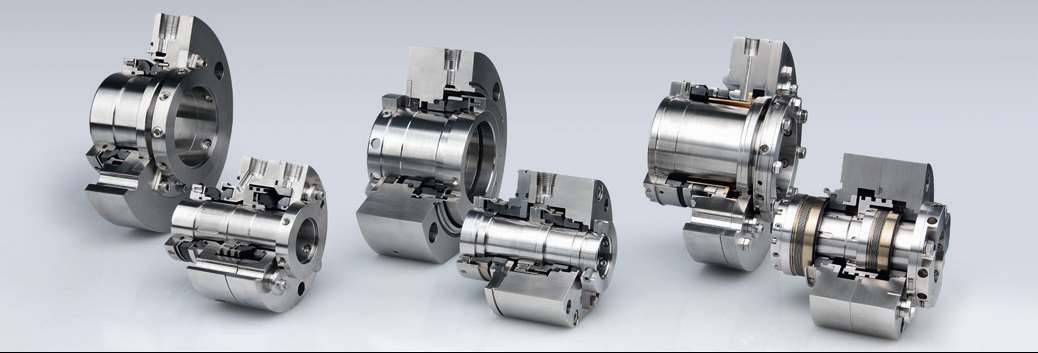

1. Why Do Mechanical Seals Even Need Flushing?

A lot of people assume that once you install a mechanical seal, you’re good to go. But that’s rarely the case.

The seal faces (rotating and stationary rings) rely on tight contact to prevent leakage—but that contact creates heat. Meanwhile, the process fluid might crystallize, coke, or carry solids. Left unchecked, any of these will wreck the seal faces in no time.

Flushing solves this by creating a controlled environment around the seal. Specifically, it handles five key challenges:

• Heat removal: Carries away frictional heat to stop seal components from overheating or the fluid from flashing to vapor (which leads to dry running and rapid failure).
• Temperature control: Cools hot fluids before they reach the seal, preserving lubrication and sealing performance.
• Pressure management: Adjusts seal chamber pressure to suppress vaporization—critical for volatile services like propane or ammonia.
• Cleaning: Flushes away particles and contaminants that could scratch or embed into the seal faces. In dirty services, we often bring in clean external flush fluid just to protect the seal.
• Isolation: Keeps the process fluid from drying out or crystallizing when it contacts air—preventing the seal faces from sticking together during startup.

In practice, a well-chosen flushing plan can extend seal life by 3 to 5 times. That’s why seasoned engineers say: “Not every pump needs a fancy seal—but every pump needs smart flushing.” And if you’re running light hydrocarbons? Flushing isn’t optional—it’s non-negotiable.

2. API Flushing Plans—Matched to Your Seal Type

API 682 groups flushing plans by seal configuration. Here’s how to match them to your application:

(I) Single-Seal Plans – Simple, Cost-Effective, Widely Used

Best for clean, non-hazardous services where occasional leakage to atmosphere is acceptable.

• PLAN 01 / PLAN 11: Self-flush from pump discharge back to suction. No extra hardware. Great for water, light oils, or other clean, cool liquids.
• PLAN 13: Reverse self-flush—fluid flows from seal chamber to pump inlet. Ideal for low-viscosity, volatile fluids like methanol or LPG condensate. Helps prevent vapor lock at the seal.
• PLAN 21: Self-flush + cooler. Use when fluid temps exceed ~120°C (e.g., hot oil systems).
• PLAN 23: Internal recirculation with a throat bushing. Boosts flow across the seal faces when the pump’s own circulation is weak.
• PLAN 31: Adds a cyclone separator to remove solids from the flush stream—good for mildly dirty services.
• PLAN 32: External clean flush (e.g., filtered water or barrier fluid). Use when the process fluid is corrosive, abrasive, or prone to coking.
• PLAN 41: PLAN 31 + cooler. Handles hot, dirty fluids—common in residue or slurry services.
• PLAN 02: Jacketed seal chamber with cooling or heating. Used when you need to keep the fluid above its pour point or below its crystallization temp.

💡 Pro tip: PLAN 14 (switchable flush direction) sounds flexible, but it’s rarely used in practice—extra valves mean more maintenance and potential leak points.

(II) Dual-Seal Plans – For High-Risk or Zero-Leakage Applications

These use two seal faces with a barrier or buffer fluid in between—perfect for toxic, flammable, or environmentally sensitive services.

• PLAN 52: Unpressurized dual seal with a vented reservoir. Simple and reliable for moderate-risk fluids like aromatics.
• PLAN 53A/B/C: Pressurized dual seal systems:
• 53A: Nitrogen-charged accumulator maintains pressure.
• 53B: Adds a circulation pump and cooler—ideal for high-temp services.
• 53C: Uses a piston-style accumulator for stable pressure in systems with big pressure swings.
• PLAN 54: Fully independent external barrier fluid system (e.g., dedicated oil console). The gold standard for chlorine, hydrogen, or phosgene—where zero leakage isn’t a goal, it’s a requirement.

(III) Quench & Leak Detection Plans

These support the primary seal rather than replace it.

• PLAN 62: External quench (usually steam or water) sprayed behind the seal to prevent solids buildup—common on slurry or black liquor pumps.
• PLAN 65: Adds a level switch to the PLAN 52 reservoir to detect inner seal leakage early. Critical for reactors or batch processes where even small leaks matter.

(IV) Dry Gas Seal Plans – For Volatile or Sensitive Services

Use clean, dry gas (usually nitrogen) instead of liquid as the sealing medium.

• PLAN 72: Tandem dry gas seal with nitrogen barrier. Standard for light hydrocarbon pumps (propane, butane, etc.).
• PLAN 74: Dual pressurized dry gas seal. Maximum containment for ultra-high-risk services.
• PLAN 75/76: Variants for high-viscosity or non-volatile fluids where process gas can’t be used directly.

⚠️ Note: Dry gas seals demand ultra-clean, dry, regulated gas. Skimp on filtration or pressure control, and you’ll pay for it in seal life.

3. Three Rules of Thumb for Choosing the Right Plan

• Start with the fluid
• Clean & cool? → PLAN 11 or 01
• Dirty or corrosive? → PLAN 32 or 62
• Volatile or toxic? → Go dual-seal (PLAN 53) or dry gas (PLAN 72)
• Check temperature and pressure
• 120°C? → You’ll need cooling (PLAN 21, 23, or 53B)

• High pressure? → Dual seals with barrier pressure higher than process pressure
• Ask: What happens if it leaks?
• Minor drip OK? → Single seal is fine
• Fire, toxicity, or environmental risk? → PLAN 54 or PLAN 74. Don’t cut corners here.

Final Thought

The best flushing plan isn’t the fanciest—it’s the one that matches your actual operating conditions. Too often, teams blame the pump or the seal when the real issue was a mismatched or undersized flush system.

This guide combines API 682 fundamentals with lessons learned from hundreds of real-world installations. If you’re tired of replacing seals every few months, ask yourself: Was the flushing plan right for the job—or just the easiest to specify?
