API OH3 Vertical Chemical Process Pump

Having worked in chemical plants for more than ten years, I have seen too many cases of midnight rush repairs and production shutdowns for rectification due to wrong pump selection. Especially for API OH3 vertical chemical process pumps, many people think: "It's just a pump; as long as the flow rate is sufficient and the head meets the standard, it's fine." But the reality is that the operating conditions are much more complex. Today, combining the mistakes I've made and the problems I've helped customers solve, I'll talk about how to choose a truly reliable API OH3 pump for your factory.

1. Don't rush to check the model; first figure out what you really need it to do

Before choosing a pump, ask yourself a few questions:

• What are you transporting? Hydrochloric acid? Caustic soda solution? Or slurry with some particles?
• What's the temperature? Room temperature or above 150℃?
• How many cubic meters per hour do you need to pump? Is the system resistance high?
• Is there negative pressure at the inlet? What is the required outlet pressure?

These are not "filling out forms to perfunctory suppliers", but the key to determining whether the pump can operate properly. I once had a customer who only said "I need a corrosion-resistant OH3 pump", but the one delivered was made of 316L stainless steel——used in high-temperature media containing chloride ions, the impeller was pitted and perforated in three months. Later, I found out that he didn't mention the trace chlorides in the medium. So, the more detailed the data analysis, the easier it will be later.

2. Different media require different pumps

API OH3 pumps can indeed handle various chemical liquids, but not just any pump can be used. For example:

• Concentrated sulfuric acid? Stay away from ordinary stainless steel; go for PTFE-lined or high-silicon cast iron;
• High-temperature sodium hydroxide solution? 316L may not hold up; nickel-based alloys should be considered;
• Viscous resins or glues? Ordinary centrifugal impellers can't suck them; open or semi-open impellers are needed, or even motors with higher power.

3. Flow rate and head: It's not better to be larger, but just right to be the most energy-saving

Many bosses think: "Buy a larger one for safety; it can be used for future expansion." But a pump is not a warehouse; being too large will only cause trouble. If the head is too high, the valve has to be throttled all the time, and energy consumption will soar; if the flow rate is too large, cavitation is likely to occur, the pump body will hum, and the seal will easily fail.

The correct approach is: calculate the real system curve according to the actual layout of your pipeline, the number of elbows, and the height difference, then compare it with the pump's performance curve to find that "high-efficiency zone"——generally between 70% and 110% of the rated flow rate. Operating in this range, the pump is the quietest, most energy-saving, and has the longest service life.

4. Material is not about "sounding advanced", but about suiting the problem

• Flow-through components (impeller, pump casing, bushing, etc.) are immersed in the medium every day; choosing the wrong material is equivalent to slow suicide. Here are some real examples:
• Transporting hydrochloric acid? PTFE lining is the most reliable; tantalum is expensive but extremely durable;
• Transporting waste liquid containing solid particles? Don't use stainless steel; choose wear-resistant cast iron or ceramic coating;
• High-temperature caustic soda solution? 316L looks good, but it is actually prone to stress corrosion cracking in caustic soda solution above 80℃.

Remember: Cheap materials save money initially, but a single production shutdown can cost ten times the price of the pump. We would rather talk more in advance than receive your call saying "it's broken again" half a year later.

5. API 610 certification is not a formality, but a safety bottom line

The "OH3" in API OH3 is itself a classification in the API 610 standard (vertical, overhung, single-stage). But some pumps on the market claim to be "API OH3" but haven't even undergone basic tests. When selecting, be sure to check:

• Does it provide design documents compliant with API 610 11th Edition or later versions?
• Is there a performance test report issued by a third party?
• Do the materials have MTR (Material Test Report)?

All our outgoing OH3 pumps come with a complete compliance package——not to pass inspections, but to let you use them with peace of mind. After all, in the chemical industry, safety is never an option, but a prerequisite.

6. High temperature and high pressure? Don't force it; customize when necessary

If your operating conditions exceed 180℃ or the pressure exceeds 2.5MPa, standard pumps can probably not hold up. At this time, don't make do; customization is necessary. For example:

• Add a cooling jacket to prevent bearing overheating;
• Use centerline support to reduce alignment problems caused by thermal expansion;
• Replace with bellows mechanical seal to handle high-temperature non-flush conditions.

Last year, we made an OH3 pump for a petrochemical plant with a medium temperature of 220℃ and pressure of 3.0MPa. We specially optimized the shafting rigidity and seal chamber structure. It has been running for more than two years with zero failures. Complex operating conditions are not terrible; what's terrible is forcing ordinary pumps to cope with them.

7. These mistakes, I've really seen too many

Finally, let's talk about several high-frequency "failure" scenarios:

• Thinking all OH3 pumps are the same: In fact, the installation method (foot or bracket), inlet and outlet directions, and coupling type all affect on-site installation. If you don't confirm in advance, you'll find that it doesn't match the pipeline when delivered, delaying the construction period;

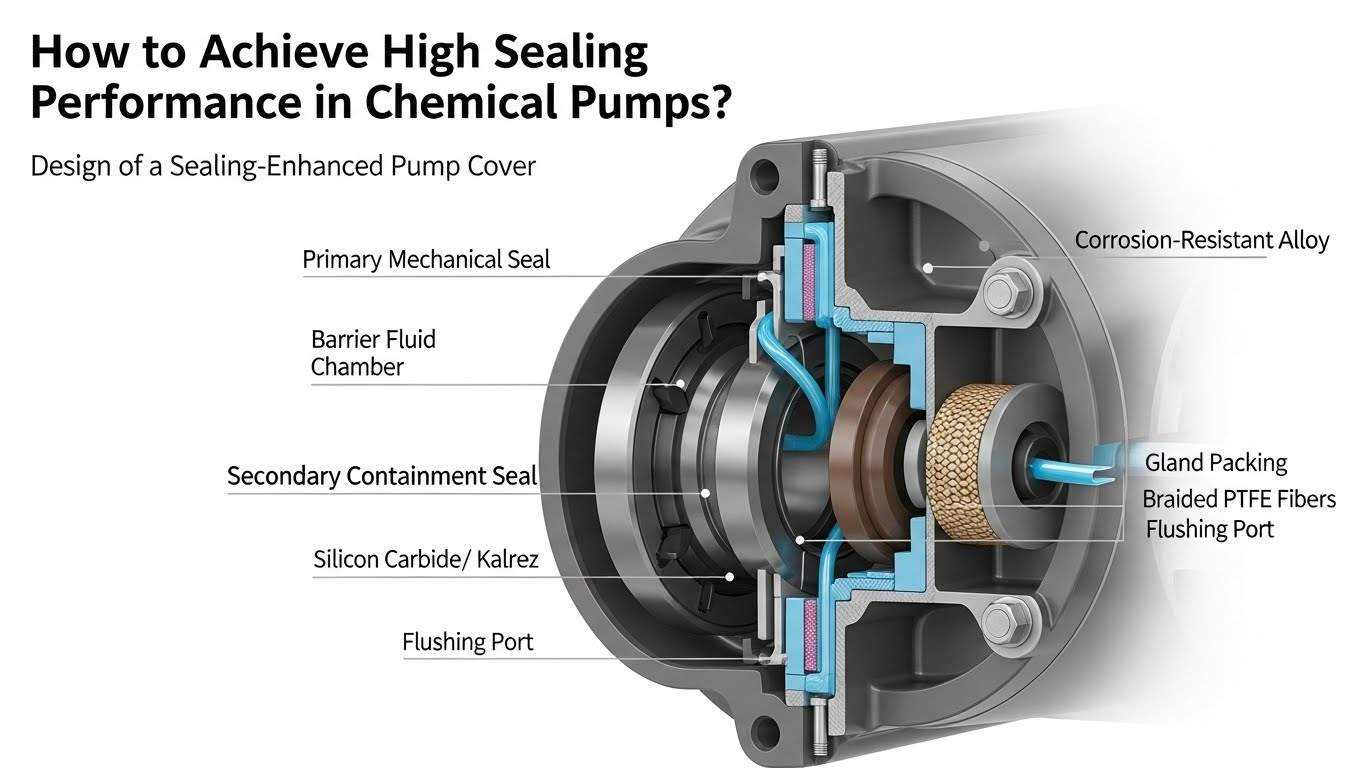

• Choosing seals casually: Using packing seals for toxic or flammable media? This is joking with safety. Double mechanical seals + PLAN53 Flush System are a must;
• Believing the salesperson's words blindly: They say "we've done similar projects" but can't even explain the pH value of the medium. Be sure to check real cases, test data, and even visit the site if possible.

In Conclusion

Choosing an API OH3 pump is seemingly a procurement behavior, but in fact, it's voting for the stability of the entire production line. If you're still tangled about the model or unsure about the material, don't worry. Send your operating condition parameters to us at teffiko. Engineers with more than ten years of experience will provide free preliminary evaluation and 1:1 customized selection suggestions to help you avoid mistakes, choose the right pump, and keep your production line running stably.
