The OH3 Centrifugal Pump: The Top Choice for Narrow Spaces

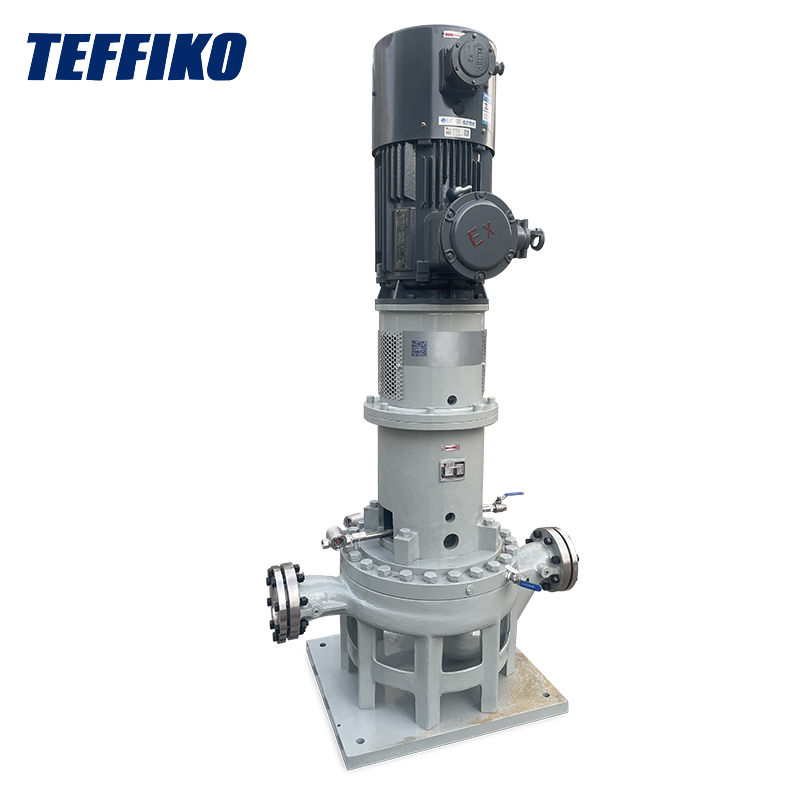

The OH3 centrifugal pump has left a deep impression on me — you can spot it everywhere, from the pipe racks of oil refineries and crowded offshore platform decks to the high-pressure pipeline systems of power plants. What sets it apart from other pump models is its reliable and durable features: a vertical design that saves space, a modular structure for easy assembly and disassembly, and the ability to withstand high temperatures, high pressures, and corrosive media. It’s like it was specifically designed to solve the most common tricky problems in industrial settings. Below, I’ll break down its core components, actual working principle, and how these designs adapt to real factory operating conditions.

I. Core Structural Components

The OH3’s performance is no empty talk — every component is precision-engineered to target industrial pain points. Let’s break them down one by one:

1.1 Vertical Modular Bearing Bracket

Unlike horizontal pumps like the OH1, which integrate the bearing housing with the pump body, the OH3 adopts an independent modular bearing bracket mounted vertically above the pump casing. This design is a revolutionary breakthrough for industrial scenarios:

• Top-tier load-bearing capacity: The bearing bracket is made of heavy-duty cast iron or ductile iron, with a minimum wall thickness of 15mm, fully capable of withstanding the nozzle loads specified by the API 610 standard. I’ve never seen it suffer from shaft misalignment due to pipeline thermal expansion, contraction, or vibration — its stability is exceptional.
• Effortless maintenance: It houses a "back-to-back" double-row cylindrical roller bearing set inside, which can withstand both radial and axial forces. Most importantly, there’s no need to disassemble the inlet and outlet pipelines; you just need to remove the bearing bracket from the top for inspection and repair, significantly reducing downtime.

1.2 Single-Stage Impeller and Double Volute Casing

The combination of the impeller and volute is a perfect match, optimized through Computational Fluid Dynamics (CFD). All models with a diameter ≥ DN80 come standard with a double volute — this small modification doubles efficiency and stability:

• Robust and exquisitely designed impeller: Available in 316L stainless steel or Hastelloy, it offers excellent corrosion resistance. The backward-curved blades minimize fluid turbulence, resulting in surprisingly high energy transfer efficiency. It is only fixed to one end of the pump shaft with a lock nut and won’t experience axial movement during operation — I specifically checked during maintenance, and it stays firmly in place even under high-intensity use.
• Double volute solves a key pain point: Ordinary single volutes generate unbalanced radial forces under high-flow conditions, which wear down the shaft and bearings over time. However, the OH3’s double volute splits the fluid into two paths through symmetric flow channels, offsetting 90% of the radial forces, significantly reducing shaft deflection and bearing wear — from my experience, this can extend the pump’s service life by several years.

1.3 API 682-Compliant Sealing System

Leakage is a fatal hazard when transporting high-pressure, toxic, or high-temperature media — but the OH3’s sealing system completely eliminates this concern:

• Stable and reliable basic configuration: Comes standard with a single-end mechanical seal, with silicon carbide-graphite sealing faces. Although not fancy, it is fully sufficient for non-hazardous media. I’ve run it continuously for months without any leakage issues.
• Highly targeted upgrade option: For transporting toxic or highly corrosive media, it can be upgraded to a double-end mechanical seal with an isolation fluid system, controlling leakage to ≤5ml/h — far lower than the 20ml/h threshold of traditional packing seals. Such a safety margin is reassuring when handling hazardous substances.

1.4 Vertical Pipeline Direct Connection Design

The "pipeline direct connection" design is a lifesaver for tight spaces and energy-saving needs. The inlet and outlet flanges are precisely aligned with the pipeline centerline, eliminating the need for additional mounting bases, and the advantages are evident from the first day of use:

• Exceptional space utilization: The DN200 model has a pump height of only 1.0-1.5 meters, reducing the floor space by 60% compared to horizontal pumps with the same flow rate. This advantage is crucial on offshore platforms or crowded refinery pipe racks — it can be installed in locations inaccessible to other pump models.
• Significant energy-saving effect: Fewer pipeline elbows reduce pressure loss, and long-term use can lower the energy consumption of the entire system by 5%-8%. While the initial cost savings are not substantial, they add up over time, making it a pleasant surprise for factory managers focused on costs.

II. Detailed Working Principle

At its core, the OH3 operates based on centrifugal force, but every link of fluid transportation has been optimized to meet the requirements of high pressure and high stability. I’ll break it down step by step in plain language:

Step 1: Fluid Suction

Fluid enters the pump through the directly connected inlet flange. The precise alignment between the flange and the pipeline ensures smooth fluid flow (no messy turbulence), and the polished inner wall of the inlet flow channel reduces frictional resistance. This ensures that fluid flows uniformly to the impeller — I’ve noticed that it rarely experiences cavitation, a common issue with cheaper pumps.

Step 2: Energy Transfer by the Impeller

The motor drives the pump shaft to rotate through a flexible coupling, causing the impeller to run at a high speed of 1450-2900 rpm. Centrifugal force pushes the fluid from the center of the impeller to its edges, and as the fluid passes through the backward-curved blades, both speed and pressure surge simultaneously. This step is the core link in converting the motor’s mechanical energy into fluid energy, and it’s the key to the pump’s operation.

Step 3: Pressure Conversion in the Double Volute

The high-speed fluid then enters the double volute. The cross-sectional area of the volute’s spiral flow channel gradually expands, slowing down the fluid and converting most of its kinetic energy into static pressure (a process called "diffusion"). The symmetric design ensures uniform pressure distribution, offsetting radial forces and keeping the pump shaft rotating smoothly — even under full load, there’s no wobbling.

Step 4: Sealing and Fluid Discharge

Before being discharged through the outlet flange, the fluid passes through the mechanical seal system. Under the action of a spring, the stationary and rotating seal rings fit tightly together, forming a tight barrier. Even when transporting high-pressure media, I’ve never encountered leakage issues. Finally, the pressurized fluid enters the downstream pipeline to meet the needs of subsequent processes.

Step 5: Stable Support of Bearings and Shaft System

During pump operation, the double-row roller bearings in the modular bearing bracket continuously support the rotating pump shaft, absorbing radial forces generated by fluid flow and axial forces generated by impeller thrust. The built-in splash lubrication system keeps the bearings cool — I’ve seen it operate at 425°C without overheating. Additionally, it requires minimal maintenance; you only need to check the lubricant level during routine inspections.

III. Comparison with Other OH Series Pumps

To intuitively demonstrate the OH3’s advantages, we compare it with two other common OH series pumps (OH1 and OH2) under the API 610 standard:

Conclusion

From personal experience, I can confidently say that the OH3 is not only a mature product complying with the API 610 standard but also a reflection of Teffiko’s in-depth understanding of industrial reliability and engineering details. It has no fancy or useless features — every component serves a practical purpose, effectively solving problems such as space saving, easy maintenance, resistance to extreme conditions, and leakage prevention.

Admittedly, it’s not the cheapest option on the market, and I’ve found that the modular bearing bracket is indeed a bit heavy. However, its reliability is more than enough to offset the initial investment cost. Teffiko doesn’t just sell equipment — they provide professional selection advice and full-lifecycle support. I’ve consulted their team several times with questions and always received prompt responses. This cooperative model enables factories to operate continuously and smoothly.

For more solutions and real cases, visit the official website: www.teffiko.com.
