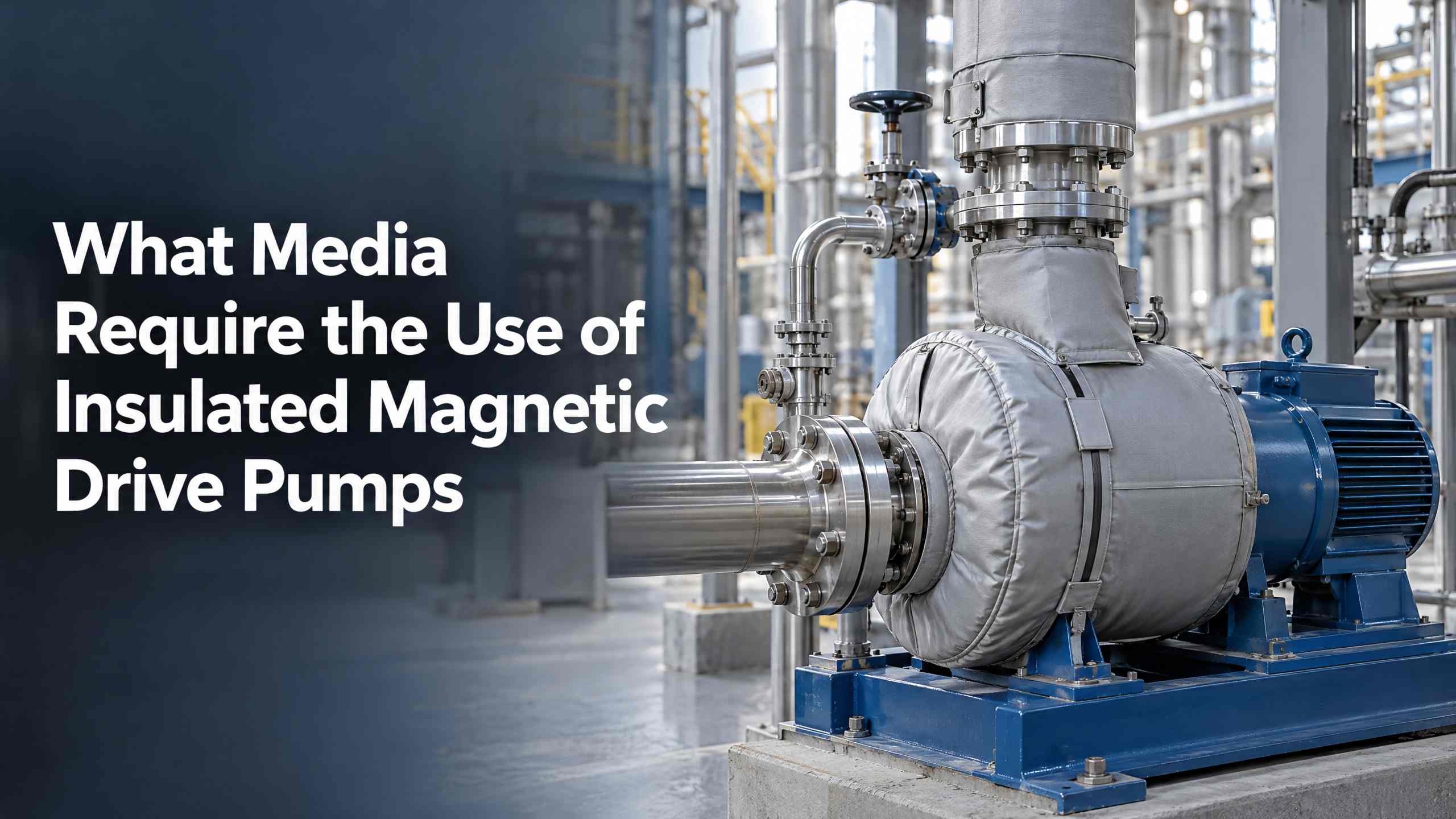

Teffiko insulated magnetic drive pumps combine the zero‑leakage, seal‑free advantages of magnetic drive pumps with jacket temperature‑control structures. They can be heated by steam or thermal oil or cooled by refrigerant to stabilize the temperature of the pumped media, preventing issues such as medium solidification, crystallization, cavitation and sharp viscosity increase. Many process engineers in chemical, petrochemical, pharmaceutical and rubber‑plastic industries often ask: what media require the use of insulated magnetic drive pumps? This article sorts media by their characteristics to help you make quick and accurate pump selection.
These media are pasty or solid under normal ambient conditions. Their fluidity drops drastically when temperature falls, easily clogging flow passages and locking the impeller. Ordinary magnetic drive pumps cannot deliver them reliably, making them the most common working‑condition media for insulated magnetic drive pumps. Typical examples include petrochemical materials such as asphalt, heavy oil, paraffin wax and coal tar, which require constant temperatures of 50‑120 °C for proper pumping performance. They are also suitable for hot‑melt lubricating grease, industrial hydrogenated oil, hot‑melt adhesive, resin slurry and other materials. Precise temperature control prevents material solidification and caking to ensure continuous feeding for production lines.
Inorganic salt solutions and fine‑chemical liquids precipitate crystals as temperature drops. Crystals will abrade pump components and block pipelines, greatly shortening equipment service life. Insulated magnetic drive pumps keep media above their critical crystallization temperature to eliminate crystal precipitation at the source. Common media include molten urea, saturated salt solutions such as sodium sulfate and ammonium sulfate, as well as dye stock solutions, electroplating brighteners and concentrated water‑treatment chemical liquids. They can avoid scaling and blockage while maintaining stable material proportions.
Pharmaceutical materials demand strict temperature and cleanliness standards. Temperature fluctuations may cause material denaturation, reduced medicinal efficacy and microbial growth. Insulated magnetic drive pumps feature no sealing dead spots and zero contamination, complying with GMP clean‑production standards. They can deliver Chinese‑medicine extracts, sterile medicinal liquids, fermentation broths and pharmaceutical mixed liquids at constant temperature, effectively avoiding material deterioration and cross‑contamination for pharmaceutical purification, batching and transfer processes.
Some chemical media are corrosive, toxic, volatile and highly temperature‑sensitive. Temperature reduction may trigger vaporization, stratification and intensified corrosion, bringing explosion‑protection risks. Insulated magnetic drive pumps integrate constant‑temperature, anti‑corrosion and zero‑leakage properties. They are suitable for high‑temperature dilute acids, organic reaction solvents, benzene‑based additives and toxic chemical intermediates. They stabilize the chemical activity of media and stop volatile leakage to guarantee safe operation under high‑risk working conditions.
Insulated magnetic drive pumps can not only provide heating insulation but also realize low‑temperature cooling by circulating refrigerant for special media susceptible to vaporization. For media such as liquid ammonia, liquid carbon dioxide, low‑temperature extraction solvents and low‑temperature electroplating solutions, constant cooling suppresses medium vaporization and prevents pump damage caused by cavitation, meeting special‑process requirements for cold‑chain chemical processing and low‑temperature extraction.
If the pumped medium remains stable at ambient temperature without solidification, crystallization, volatilization or viscosity rise, standard magnetic drive pumps will suffice. Jacket structures raise equipment cost and maintenance complexity. Insulated magnetic drive pumps are only suitable for temperature‑sensitive media.
In summary, insulated magnetic drive pumps are required for five categories of media: highly viscous media prone to solidification, media prone to crystallization and scaling, temperature‑sensitive clean pharmaceutical media, high‑risk corrosive volatile media, and media prone to vaporization at low temperatures. For accurate pump‑selection support, please visit our official website at [www.teffiko.com] or send your operating‑condition parameters to our official email sales@teffiko.com for dedicated technical support and quotation.
