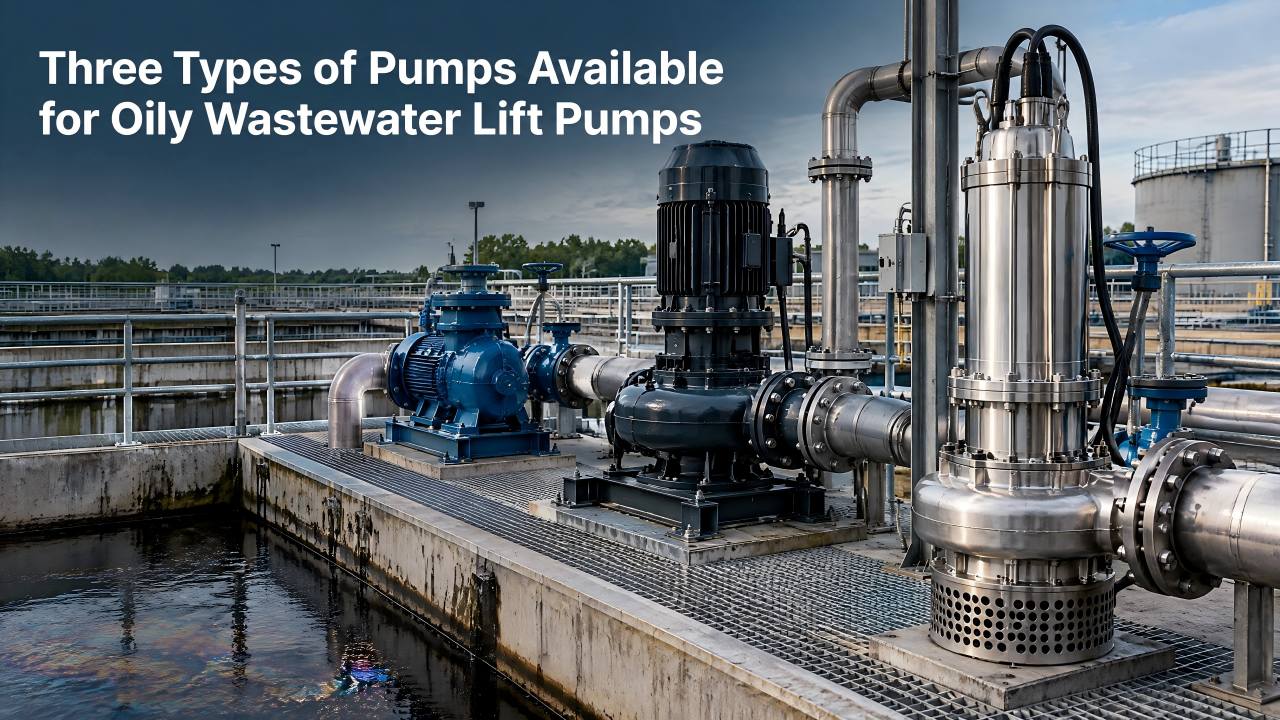

Three Types of Pumps Available for Oily Wastewater Lift Pumps

In fact, judging whether a water pump can be used as an oily wastewater lift pump is straightforward: as long as the material, structural performance of the equipment can adapt to on‑site water quality, head, flow rate, anti‑clogging, anti‑corrosion and other working condition requirements, it can be deployed for oily wastewater lifting. For complex oily sewage conveyance scenarios across various industries, Teffiko has in‑depth expertise in the pump industry and has developed multiple special lift pumps with outstanding adaptability. Among them, vertical inline pumps, submersible sewage pumps and fluoroplastic centrifugal pumps deliver the strongest practicality and broadest application coverage, fully meeting oily wastewater lifting demands under diverse working conditions.

I. Vertical Inline Pump

The vertical inline pump is an oily wastewater lift equipment featuring compact structure, stable operation and strong adaptability. Adopting a vertical inline configuration with consistent inlet and outlet diameters and coaxial centers, it can be directly connected in series to the pipeline system. It offers easy installation and occupies minimal floor space. Thanks to its magnetic‑drive structure and coaxial direct‑coupled design, it stands as the preferred pump for lifting clean oily wastewater and low‑impurity oily wastewater.

Core Structure and Performance Advantages

•  Magnetic drive for zero‑leakage operation: Eliminating the conventional mechanical seal structure and adopting magnetic transmission, it completely rules out shaft seal leakage and achieves "zero‑leakage" conveyance. It effectively prevents on‑site pollution and safety hazards caused by oily wastewater spillage.
•  Energy‑saving and low‑noise with balanced load: The motor and impeller adopt a direct coaxial coupling design for higher transmission efficiency and lower power consumption. It automatically balances radial and axial loads generated during pump operation, resulting in slight vibration, low noise and robust long‑term operational stability.
•  Maintenance without pipeline disassembly for easy operation: The inlet and outlet lie on the same centerline with a simple and compact structure. When overhauling wearing parts such as impellers and sealing components, pipeline disassembly is unnecessary, greatly reducing later‑stage operation‑and‑maintenance difficulty and costs.

Application Scenarios

It applies to pressurization and lift conveyance of oily wastewater with few impurities, moderate viscosity and high sealing requirements in petrochemical, mechanical processing, workshop cleaning and other scenarios, and suits fixed‑pipeline continuous water‑supply working conditions.

II. Submersible Sewage Pump

The submersible sewage pump is a submersible special‑purpose pump for oily wastewater lifting. The complete unit can be directly submerged in sewage tanks, regulating tanks and collecting wells without constructing ground pump houses. Custom‑built with corrosion‑resistant materials, the equipment has undergone targeted structural optimization for oily wastewater’s tendencies toward clogging and corrosion. It serves as mainstream equipment for oily wastewater lifting in industrial sewage tanks.

Core Structure and Performance Advantages

•  Superior anti‑clogging structure: It features a unique single‑vane impeller design with wide and unobstructed flow passages. It is not prone to entanglement or clogging by oil contaminants, flocs and solid impurities, perfectly adapting to oily sewage conditions with mixed impurities and preventing frequent pump clogging and shutdowns.
•  Full‑unit corrosion resistance for extended service life: The motor housing is integrally formed from stainless steel. The pump body supports multiple material options including FC, SUS304 and SUS316. The main shaft and all fasteners are made of stainless steel, delivering resistance to oil‑induced corrosion and rust for long‑term service in harsh underwater conditions.
•  Stable and durable with prolonged service life: The main shaft undergoes precise dynamic balance calibration for smooth rotation, effectively lowering bearing wear and extending equipment service life. The motor adopts pure‑copper coils with good heat dissipation and sufficient power, supporting long‑term continuous full‑load operation.

Application Scenarios

It is widely used for lifting oily wastewater containing impurities, oil contaminants and suspended solids in factory sewage tanks, sewage treatment stations, car‑washing industries, printing‑and‑dyeing industries and more. It suits tank working conditions characterized by large flow rates, non‑stop operation and drastic water‑level fluctuations.

III. Fluoroplastic Centrifugal Pump

The fluoroplastic centrifugal pump is a special‑purpose pump developed for corrosive oily wastewater and mixed acid‑alkali oily wastewater. It combines the mechanical strength of metals with the corrosion‑resistant properties of fluoroplastics, addressing pain points of ordinary pumps such as poor corrosion resistance, easy breakdown and frequent damage. It is the core pump selection for harsh and complex oily wastewater working conditions.

Core Structure and Performance Advantages

•  Resistance to strong acids, alkalis and corrosion: The pump head adopts a reinforced cast‑iron liner fluoroplastic structure. The fluoroplastic fits closely against the metal shell without gaps, detachment or easy breakdown. It can convey complex wastewater mixed with oil contaminants, acids and alkalis over long‑term cycles, with corrosion‑resistant performance far exceeding ordinary water pumps.
•  Durable impeller for stable performance: It uses custom impellers with metal cores wrapped in fluoroplastics, boasting high rigidity, deformation resistance and wear resistance. It maintains stable working conditions even at high rotational speeds and prevents impeller corrosion damage and flow‑rate attenuation.
•  Large flow rate and high head: Optimized overall hydraulic models deliver both large‑flow conveyance and high‑head pressurization capacity, satisfying oily wastewater conveyance demands for long‑distance and high‑resistance pipelines.

Application Scenarios

It suits lifting of acid‑alkali corrosive oily wastewater in chemical, pharmaceutical, fine‑processing and other industries. It delivers excellent adaptability for harsh high‑corrosion oily sewage working conditions beyond the capacity of ordinary water pumps.

How to Select an Oily Wastewater Lift Pump?

All three pump types can be deployed as oily wastewater lift pumps. Rapid selection can be completed based on on‑site water quality, working conditions and installation requirements:

•  Prioritize vertical inline pumps for zero‑leakage, energy‑saving and pipeline‑mounted applications, suitable for clean oily wastewater and closed‑pipeline conveyance.
•  Choose submersible sewage pumps for submerged installation in sewage tanks, high impurity loads and anti‑clogging requirements. They feature anti‑clogging and anti‑corrosion properties and support 24‑hour continuous operation.
•  Select fluoroplastic centrifugal pumps for oily wastewater containing acids, alkalis and strong corrosives. They are corrosion‑resistant and durable for harsh working conditions.

Summary

Teffiko vertical inline pumps, submersible sewage pumps and fluoroplastic centrifugal pumps are three core options for oily wastewater lifting. They serve energy-saving zero-leakage pipeline, anti-clogging sump and high-corrosion harsh conditions respectively. Proper selection based on water quality, impurities, installation, flow and head ensures stable, low-fault and cost-effective oily wastewater system operation.

Contact the Teffiko team for pump selection, technical data and quotation. We customize economical pumping solutions for your site. Email: sales@teffiko.com
